Serie GB 500_TR STANDARD

Краны для обработки пресс-форм с грузоподъемностью до 500 кг.

GB 500_tr STANDARD это кран для подъема и транспортировки тяжелых грузов До 500 кг..
Идеально подходит для использования в промышленном секторе пластмасс

ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ

Весь ассортимент оборудования Gruniverpal сертифицирован в соответствии со следующими международными стандартами. ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ

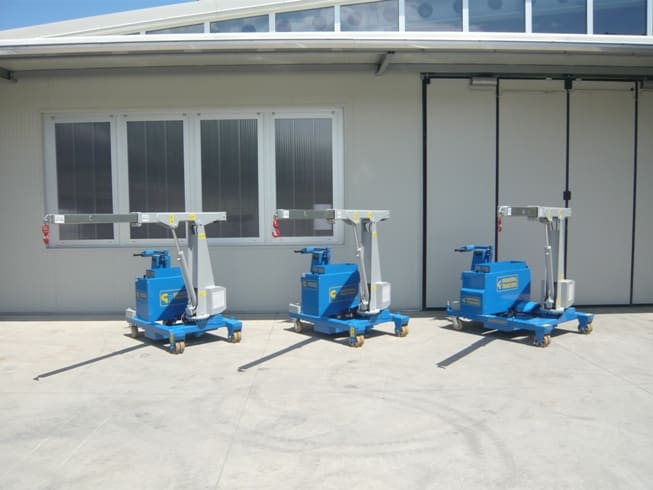

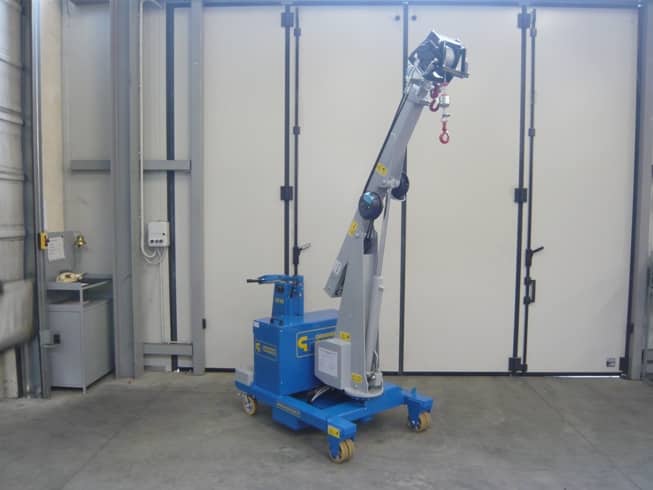

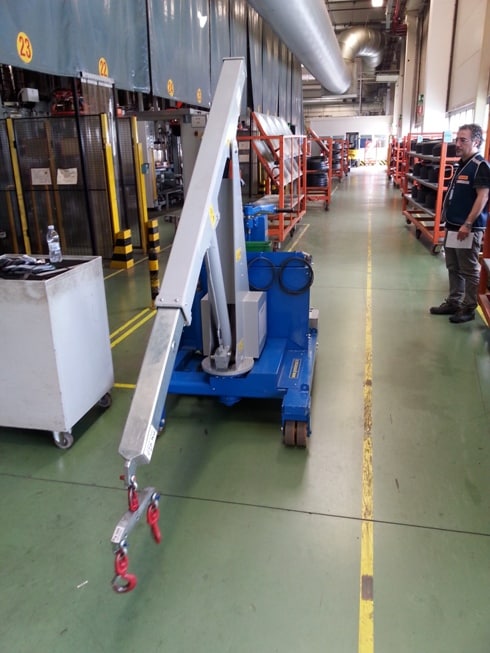

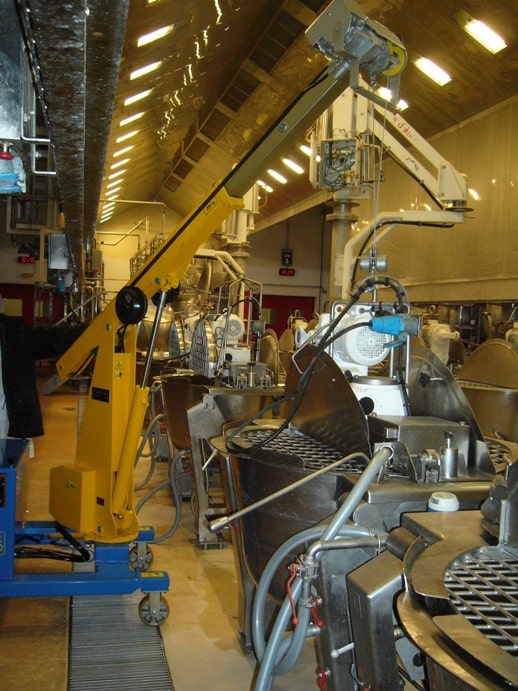

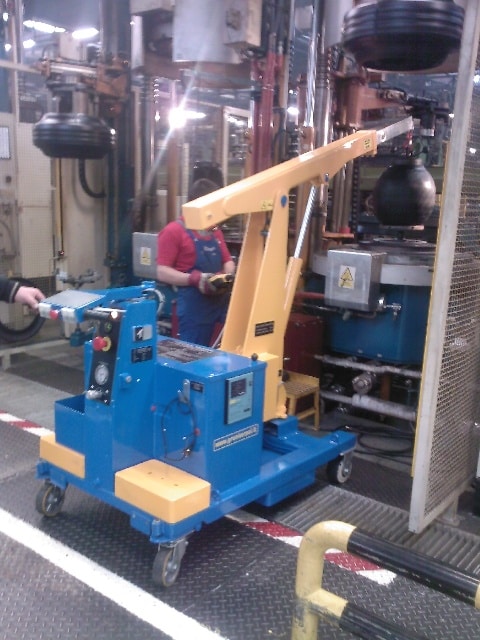

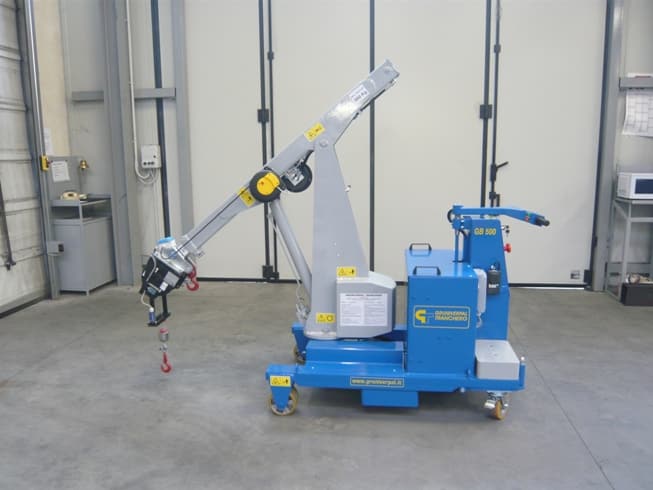

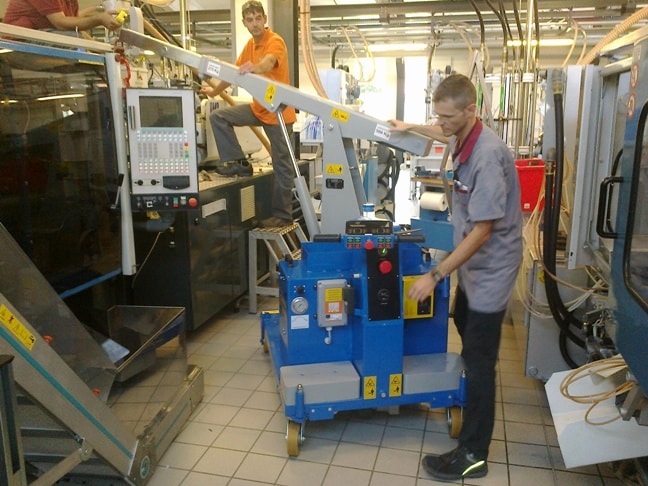

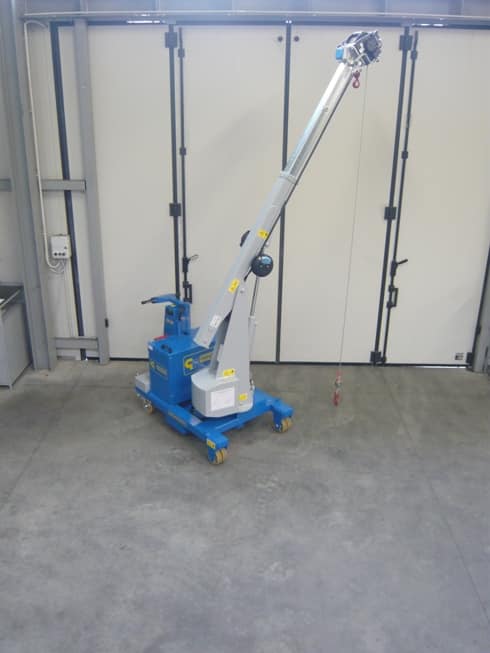

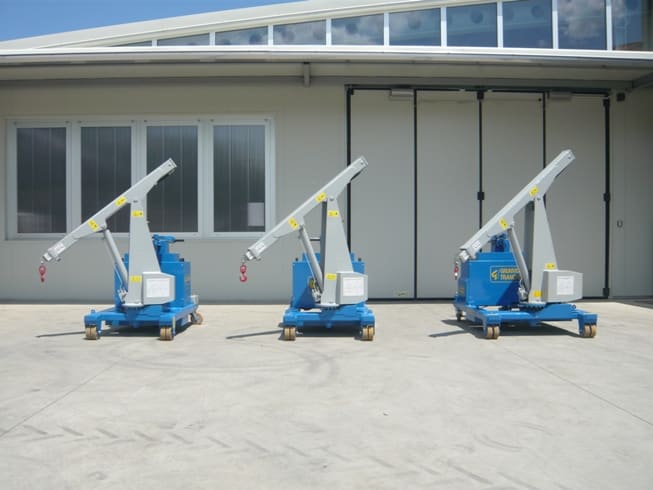

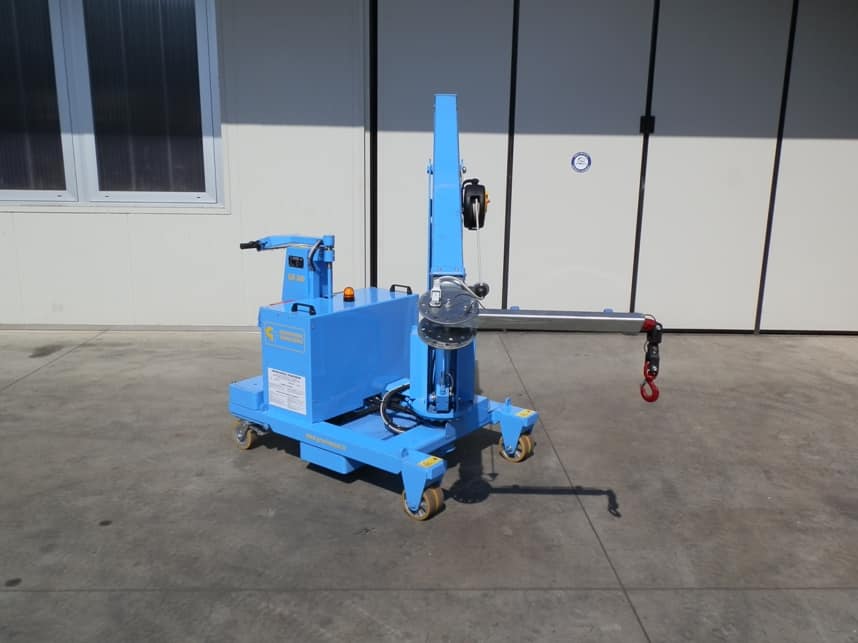

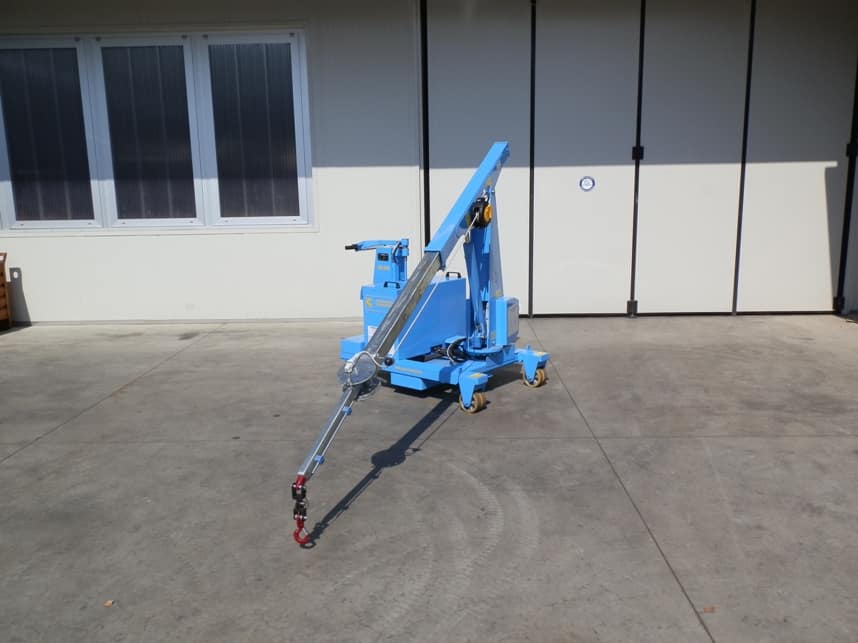

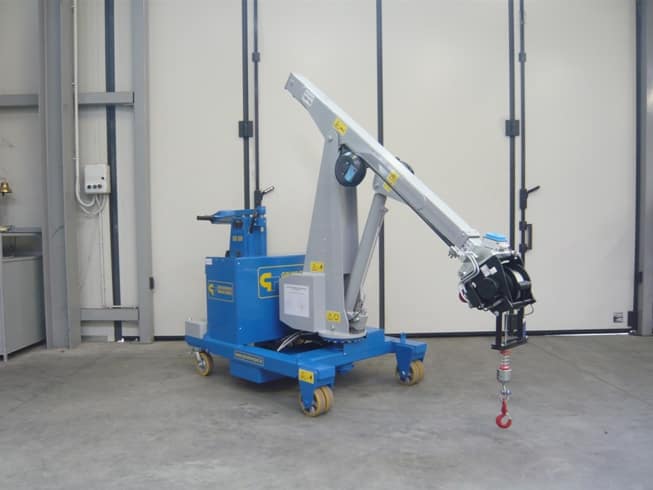

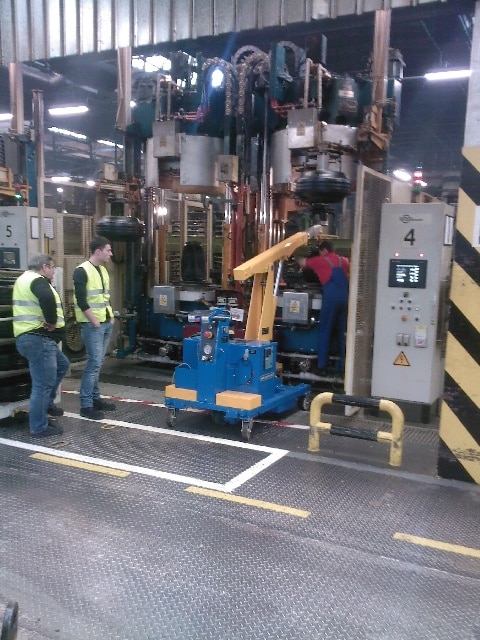

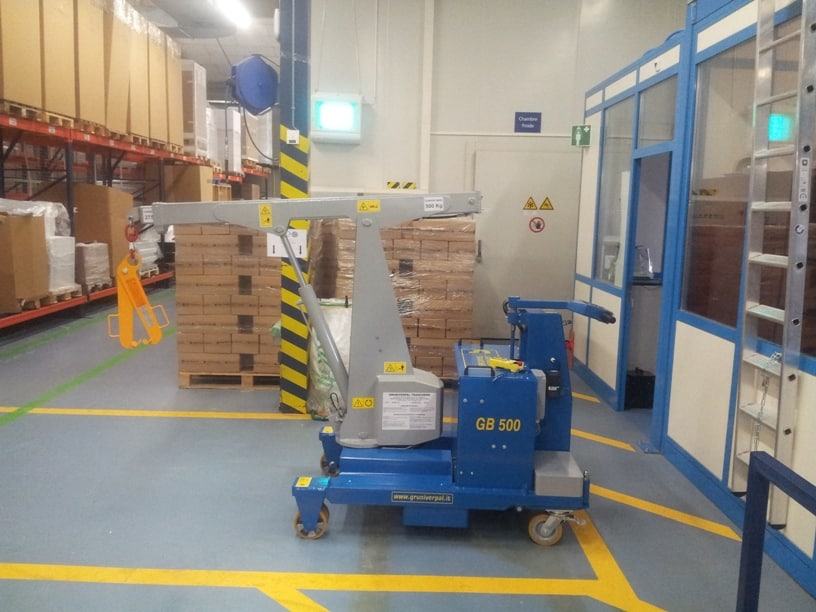

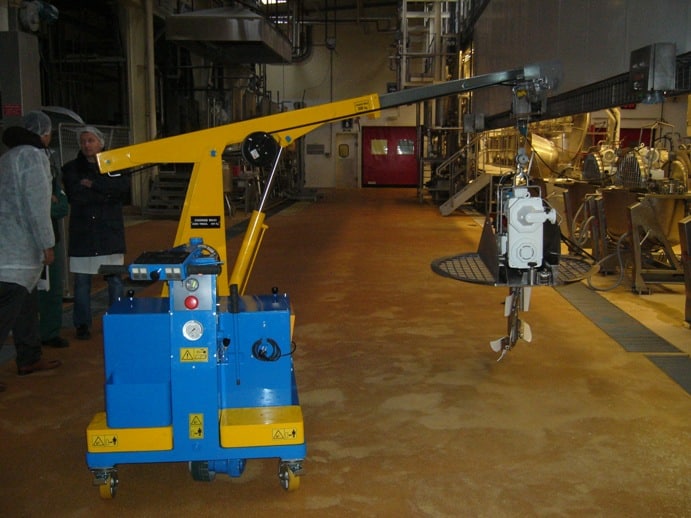

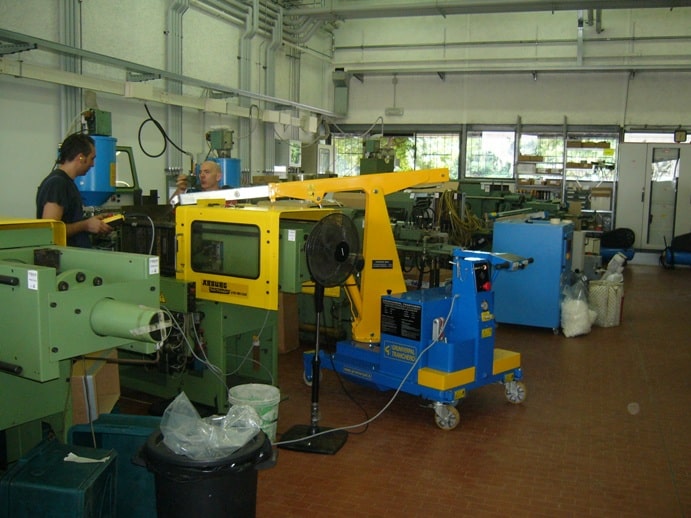

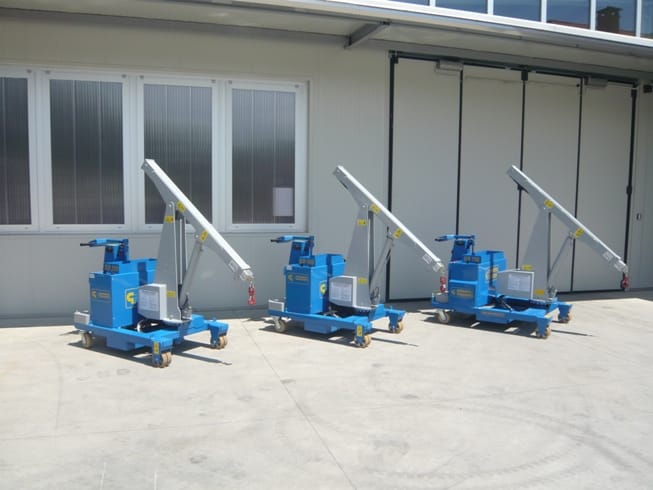

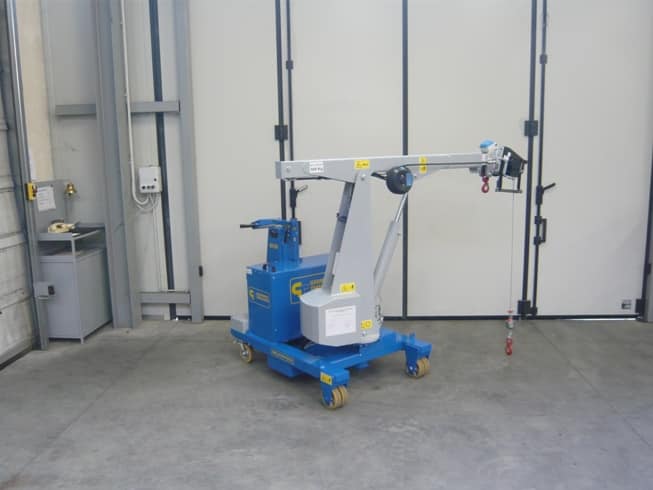

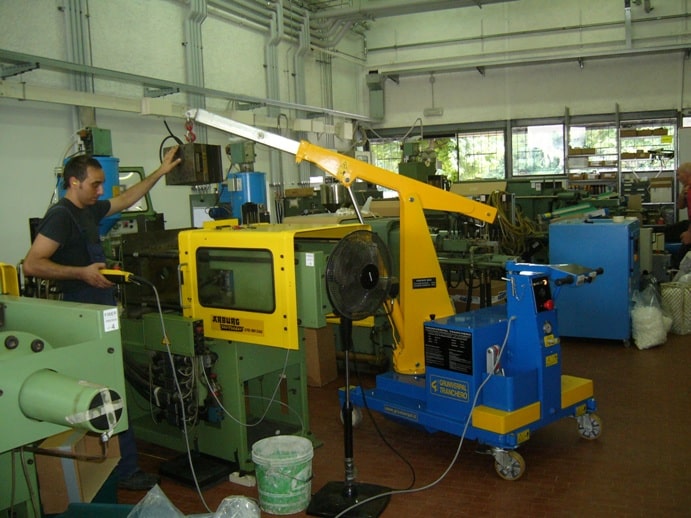

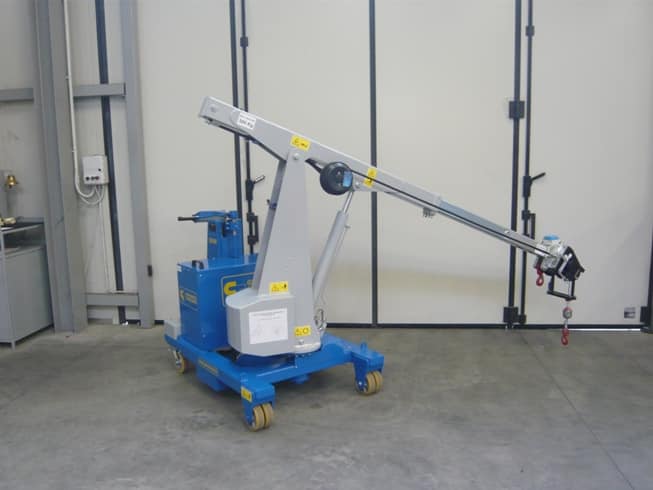

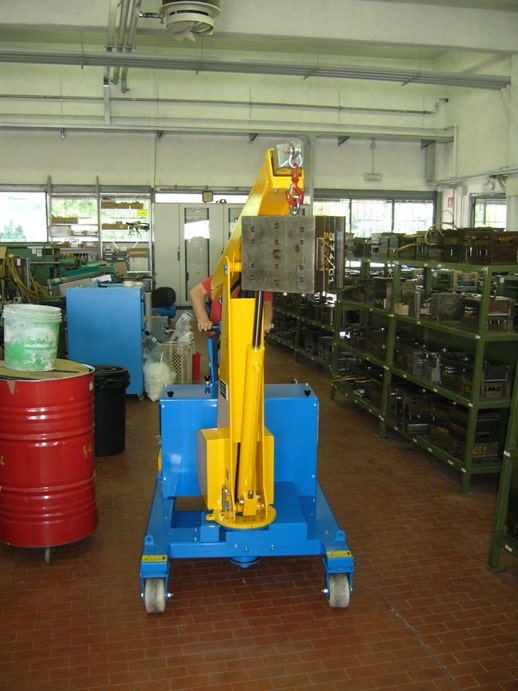

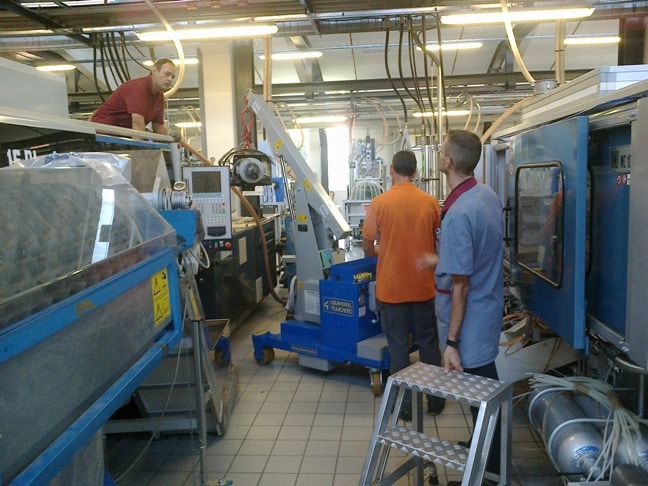

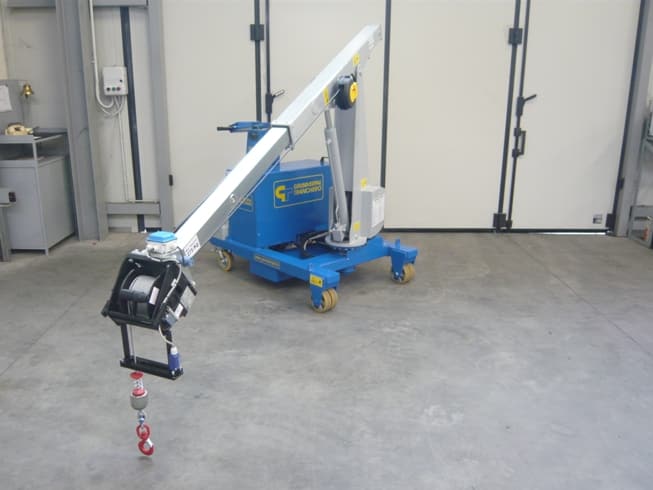

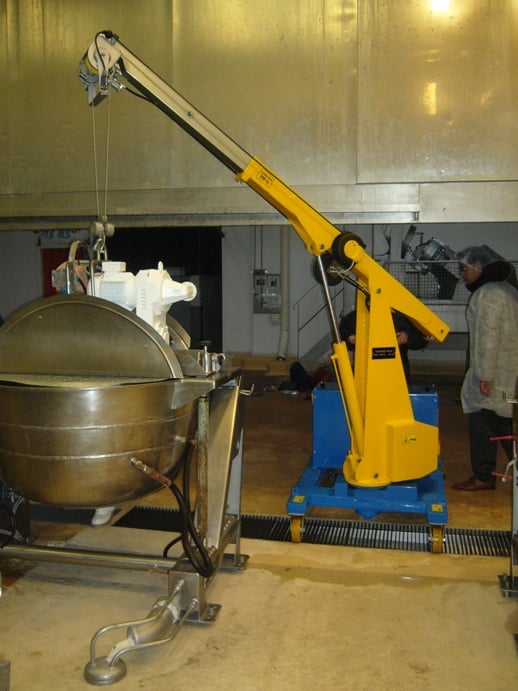

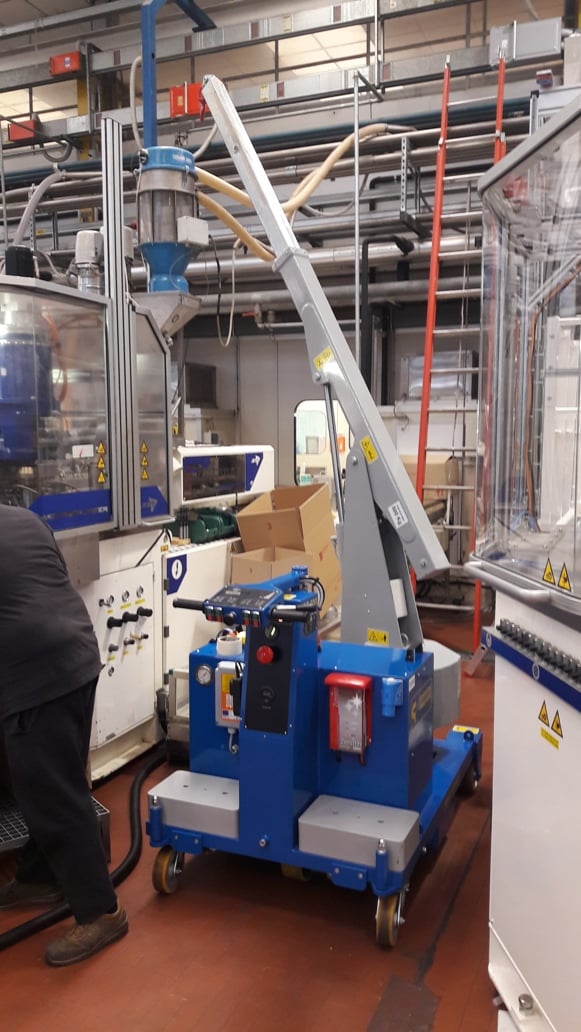

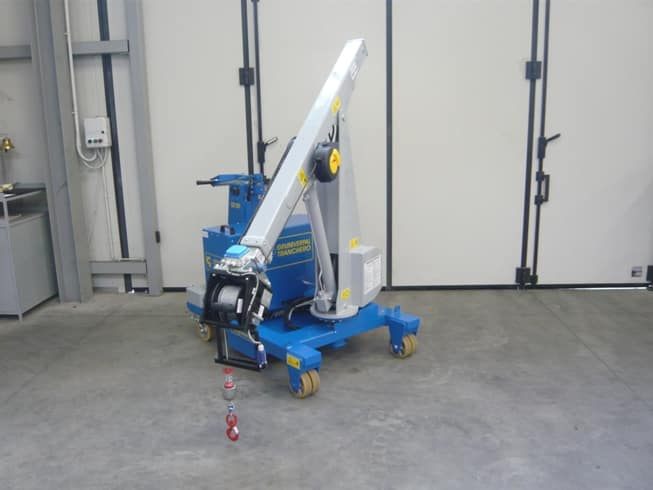

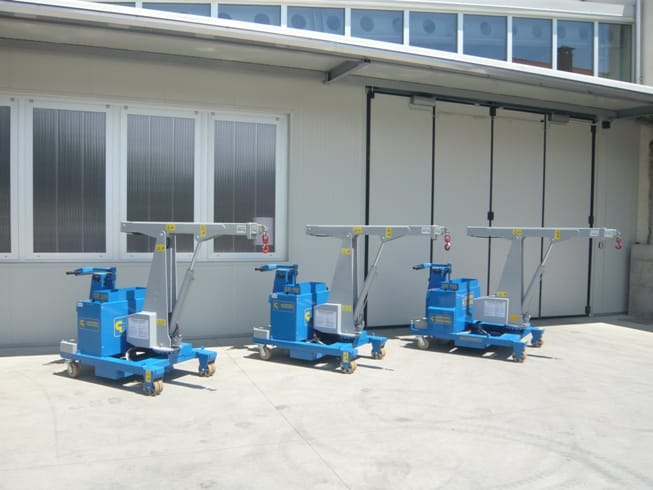

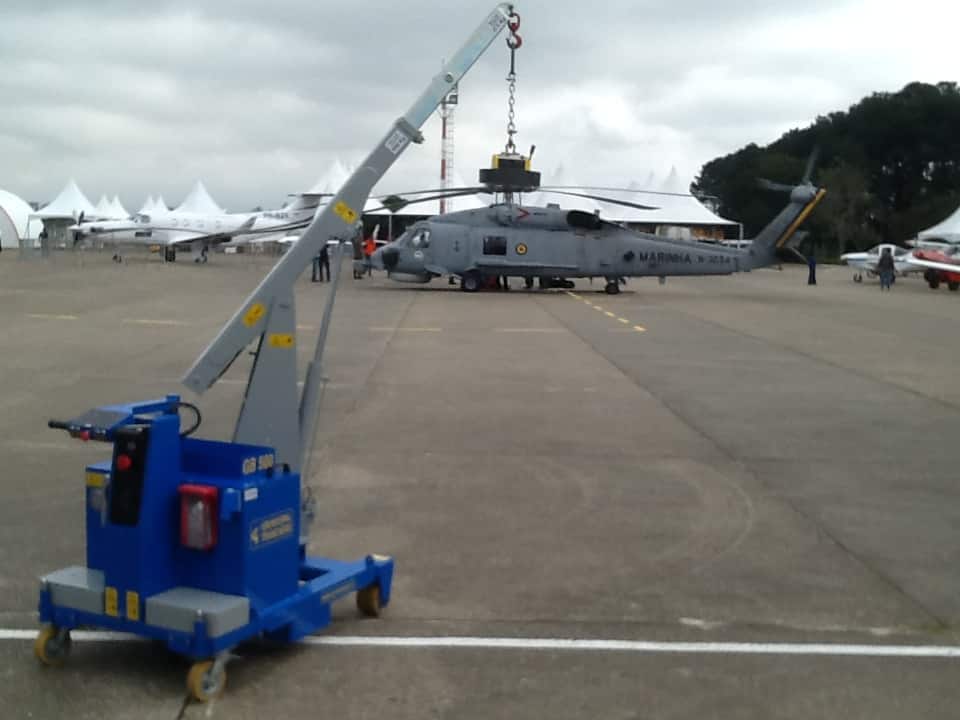

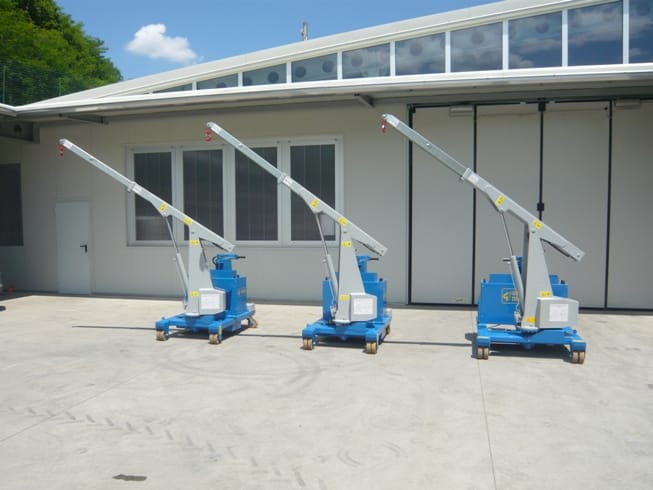

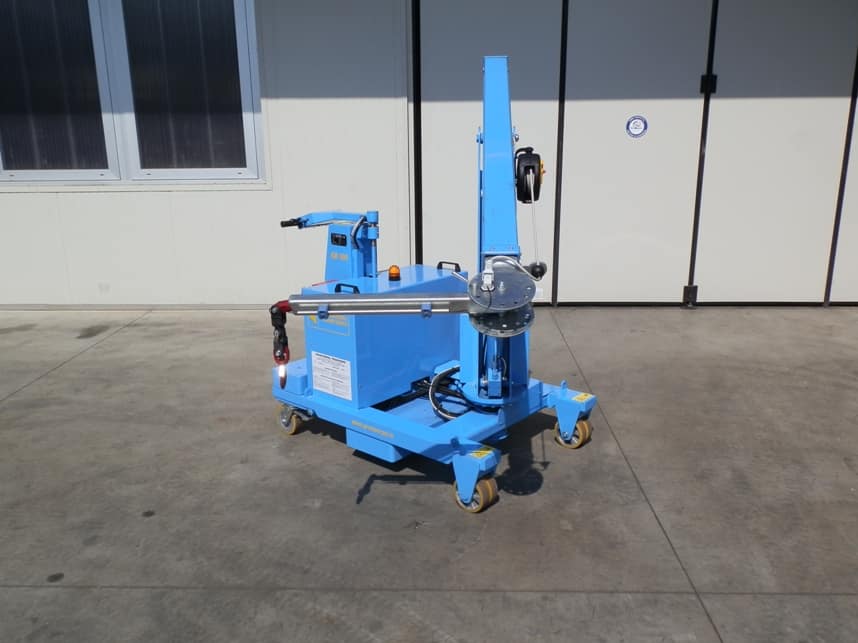

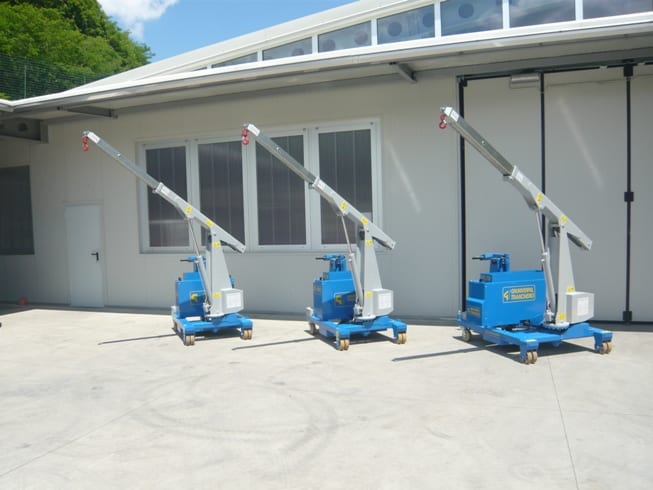

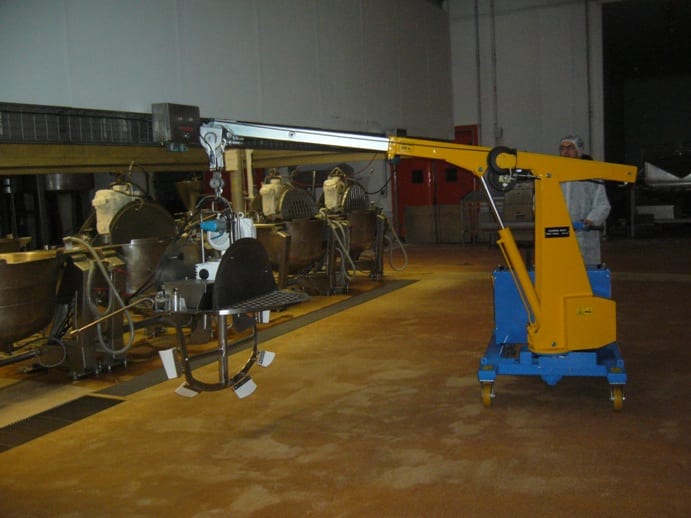

Photogallery

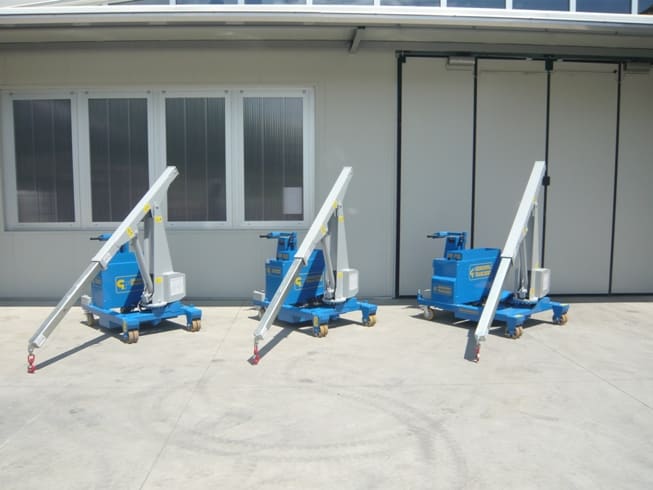

Краны для обработки пресс-форм с грузоподъемностью до 500 кг.

Video

Технические характеристики


	GB500_TR STANDARD
Maximum load capacity	500 KG
Standard min. hook's height from the ground	200 mm
Standard max. hook's height from the ground	3.200 mm
Possibility to extend height up to (option)	4.200 mm
Standard max. telescopic extension	1.960 mm
Capacity at standard max. telescopic extension	280 kg
Possibility to extend telecopic extension up to (option)	3.000 mm
Capacity at max.telescopic extension (point 7)	180 kg
Rotation (option)	60° - 150° -270°
Wheelbase	1.200 mm
Dimensions- lenght	1.550 mm
Dimensions- width	950 mm
Dimensions- height	1.600 mm
Adjustable speed from / to	From 0 to 40 m/min
Max. surmountable slope ( unloaded )	8%
Max. surmountable slope ( loaded )	3%
Front wheels	4 x Ø 160 x 60 mm
Wheels material	Polyurethane
Drive	REAR WHEEL
Total weight	1.350 KG
Electric motor power	1,5 KW / 12 V.
Hardened battery (standard)	200 Ah / 12 V
Battery charger on board	110 / 240 V -50/60 Hz
Lead acid battery	-
Gel battery	●
Additional autonomy of battery	○
Proportional control on board of all mouvements	●
Certification to standard 2006/42 CE	●
Made in accordance (not certified) to standard UL508 A	●
Certification (issued by Third Party) to standard UL508 A	○
Drive hydraulic unit	●
Automatic braking system	●
Overloading safety system	●
Pressure safety valves on each movements	●
Safety emergency electric devices	●
Winch (lifting capacity on demand)	○
Wireless remote control (capacity on demand)	○
User Manual and technical documentation	●
Possibility to do all movements with max. Load	●
