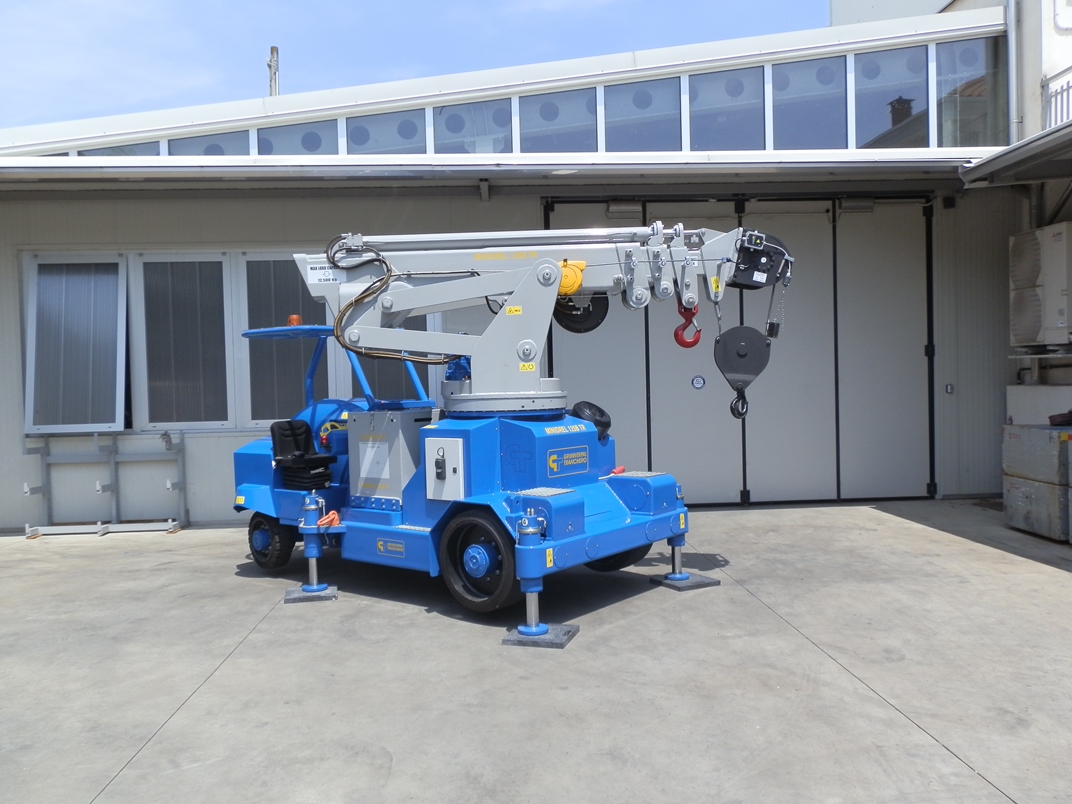

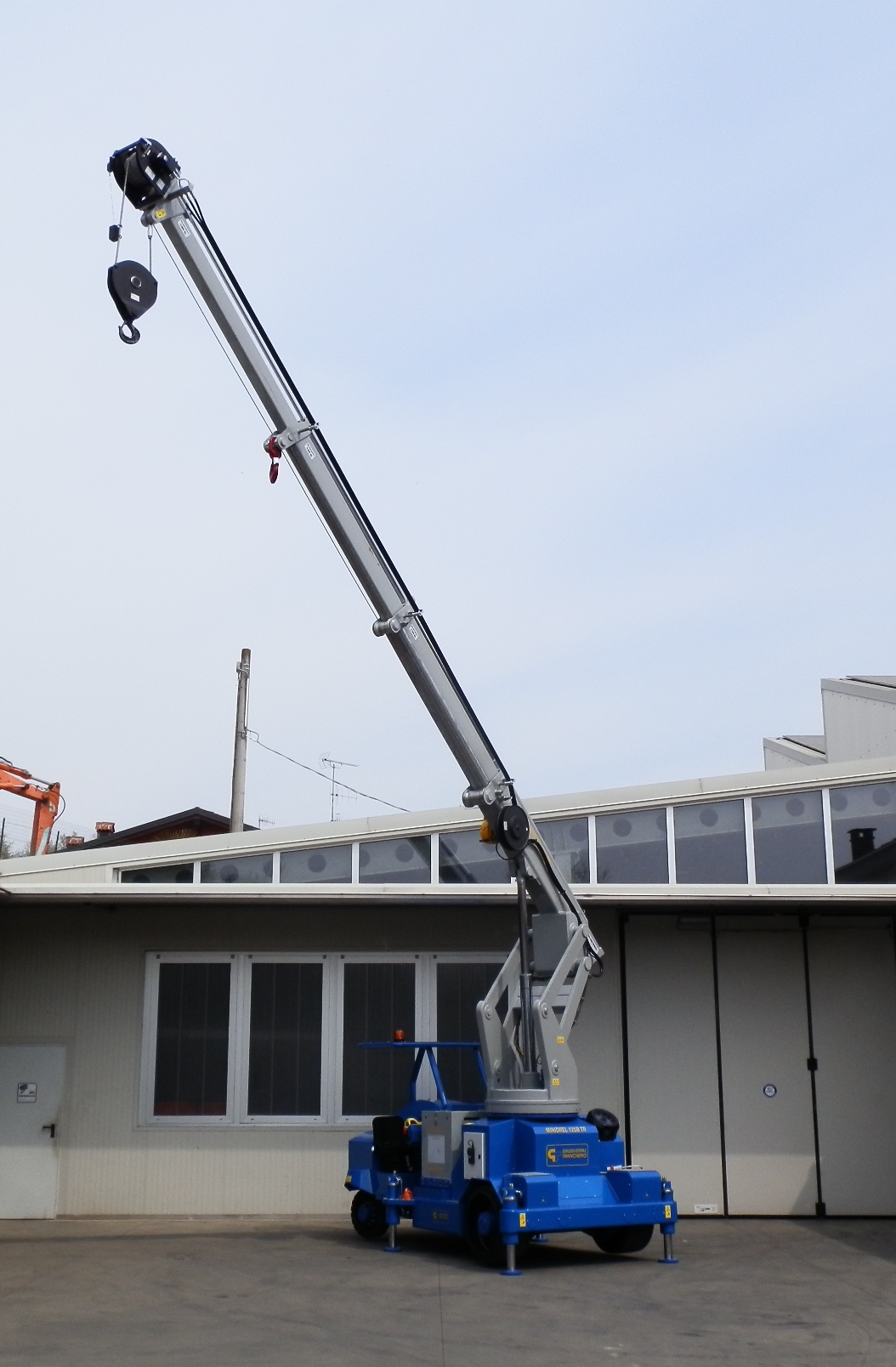

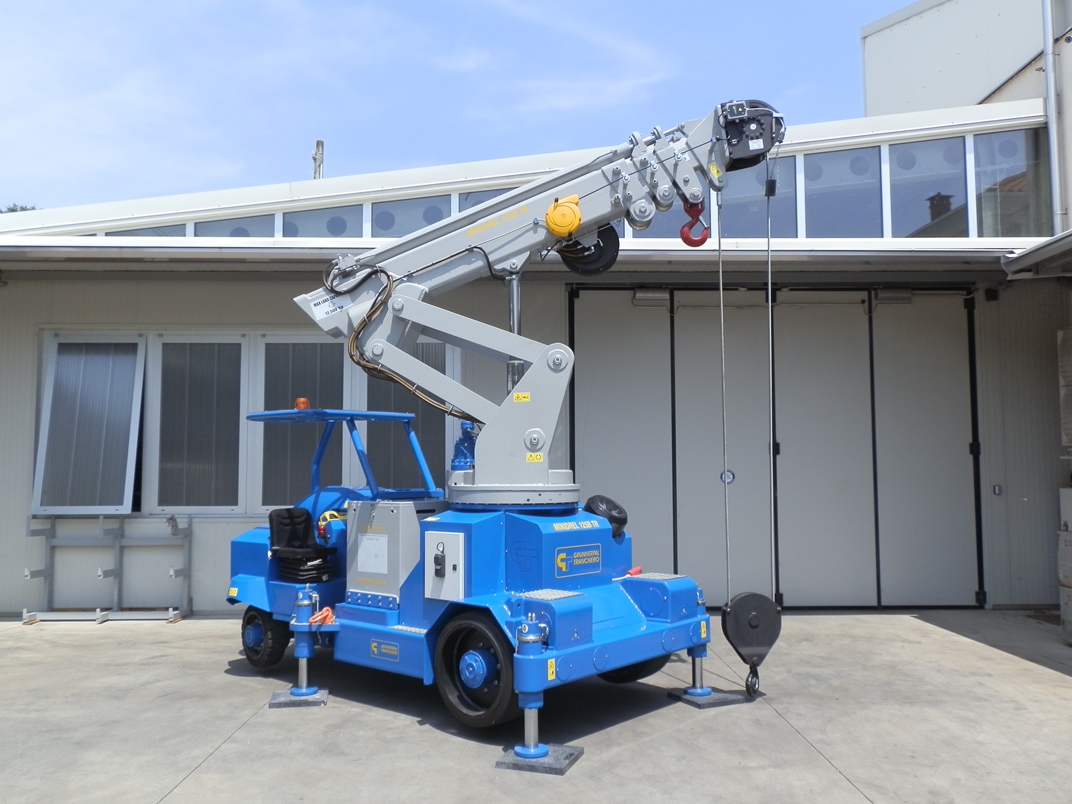

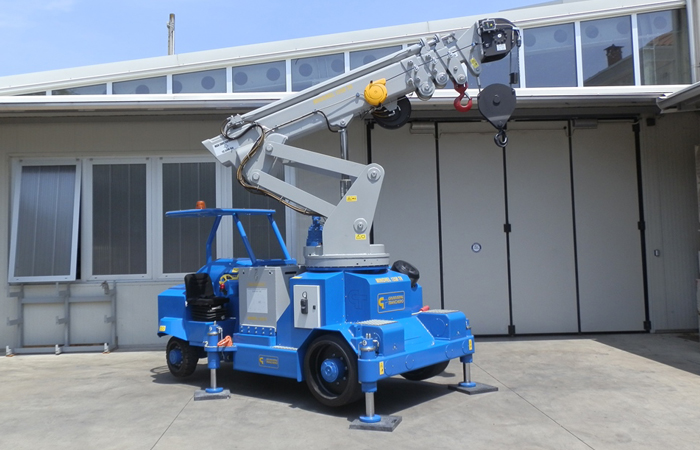

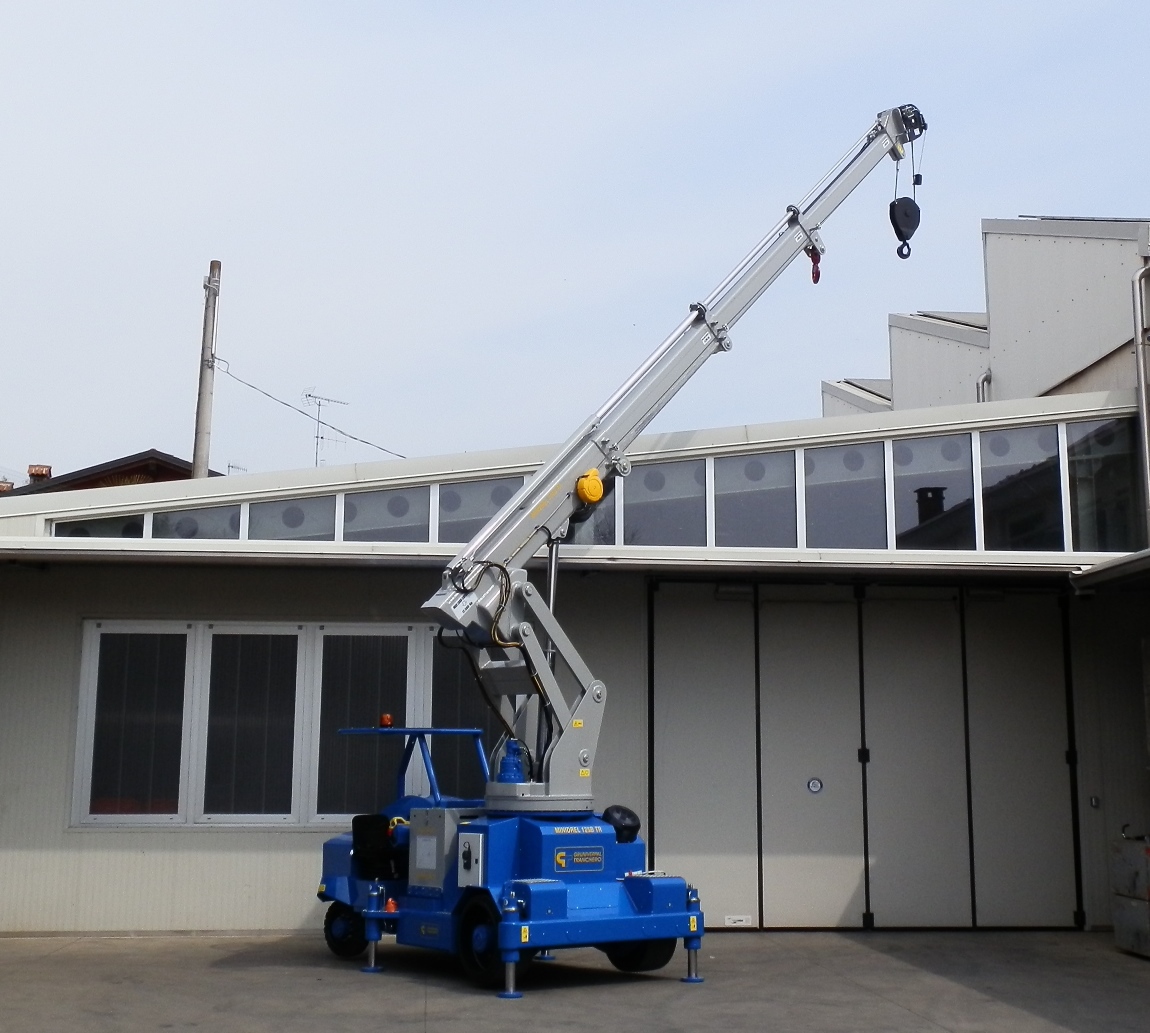

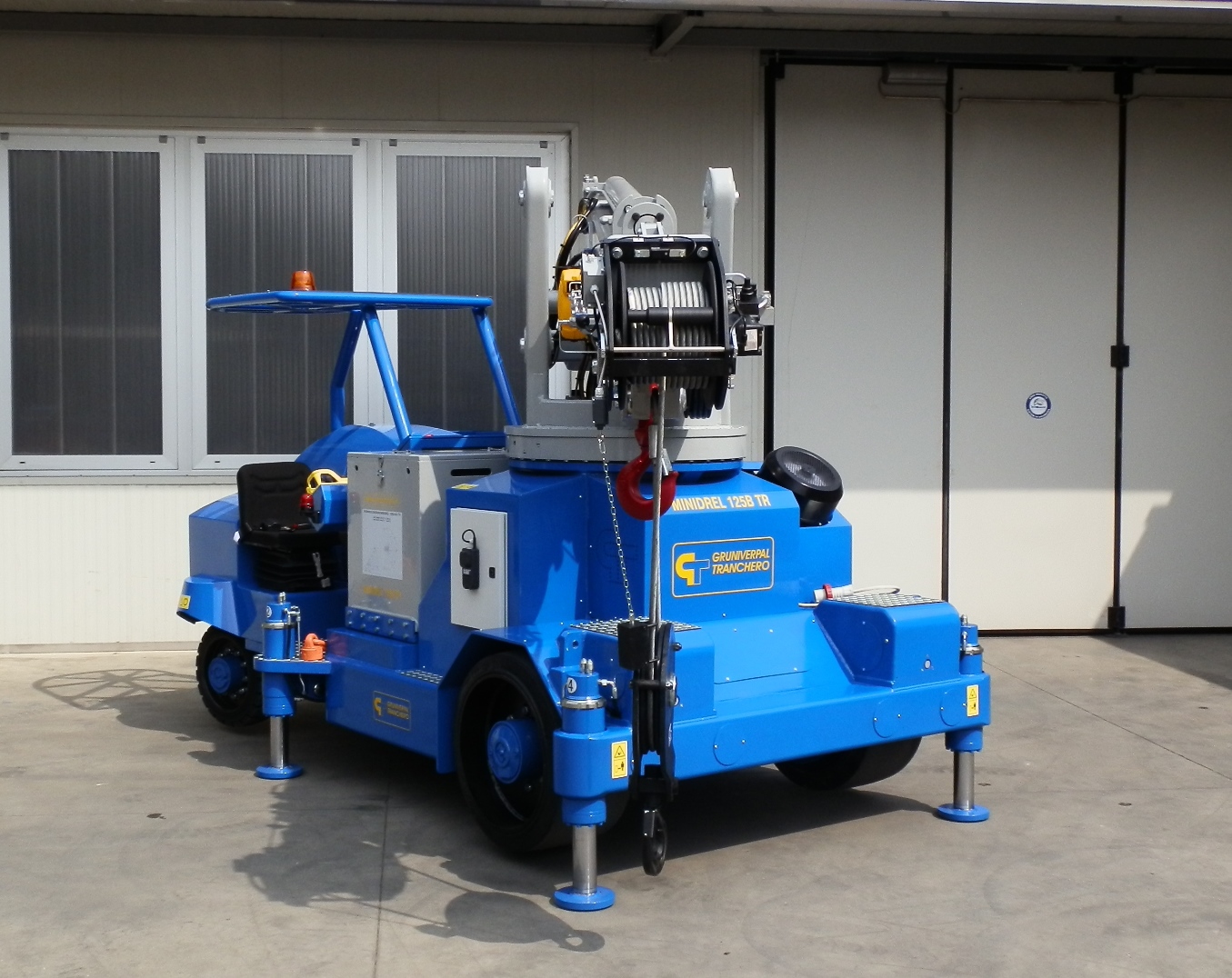

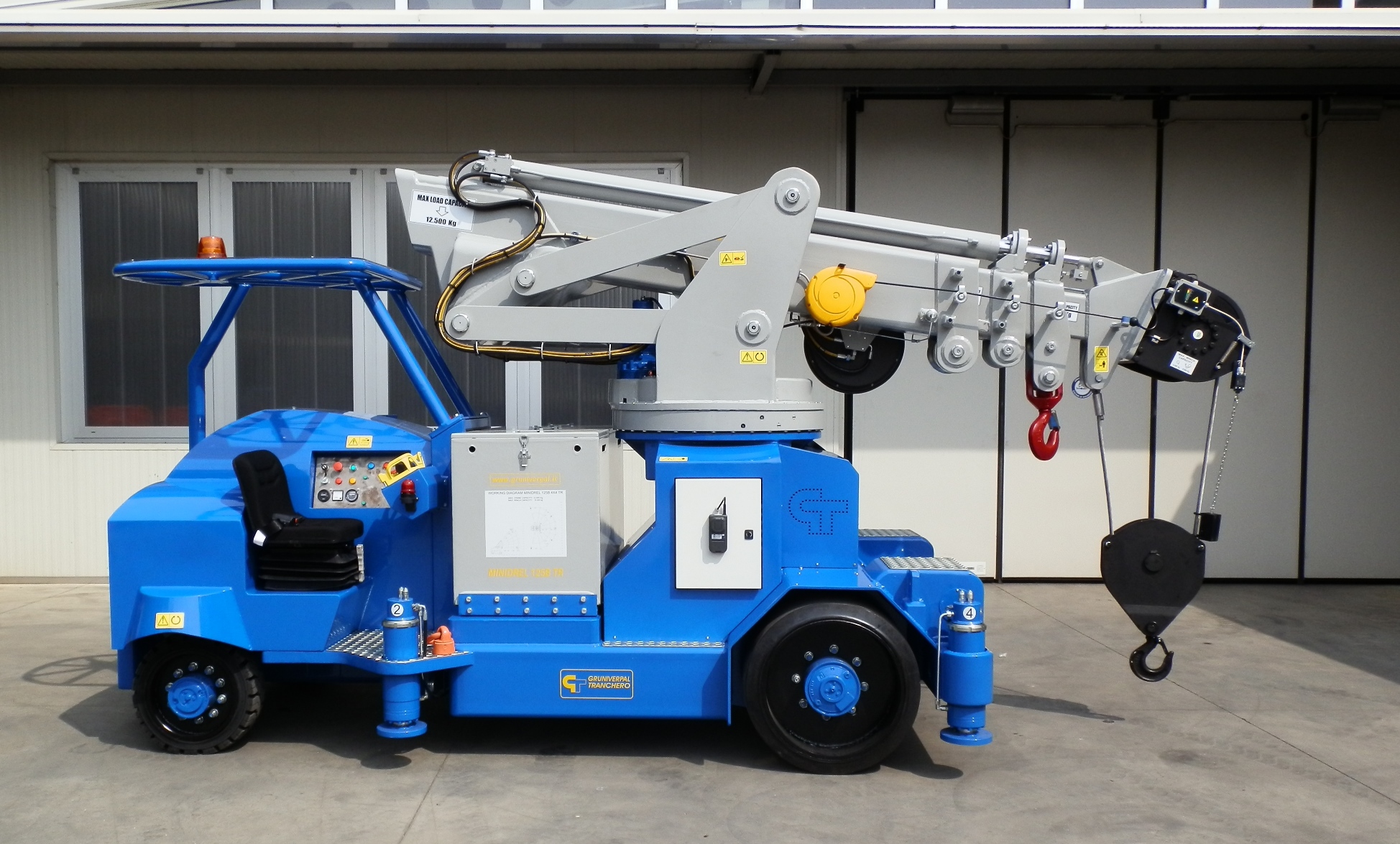

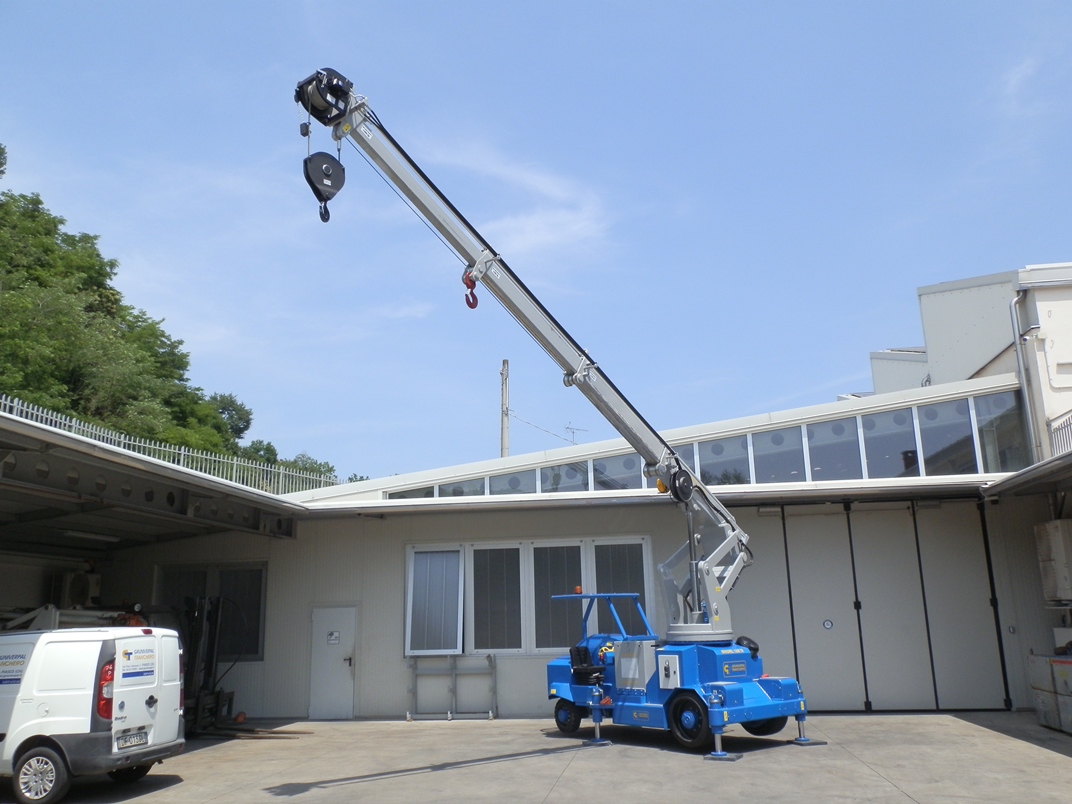

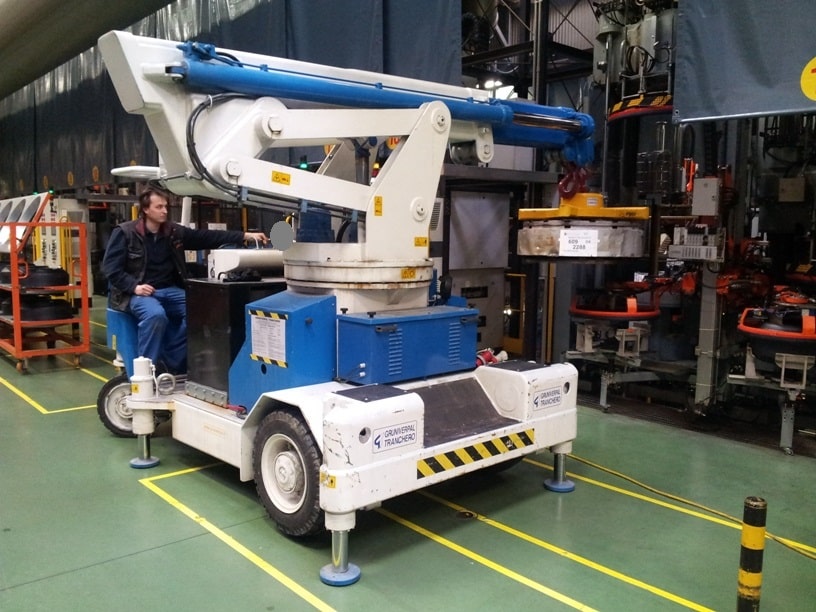

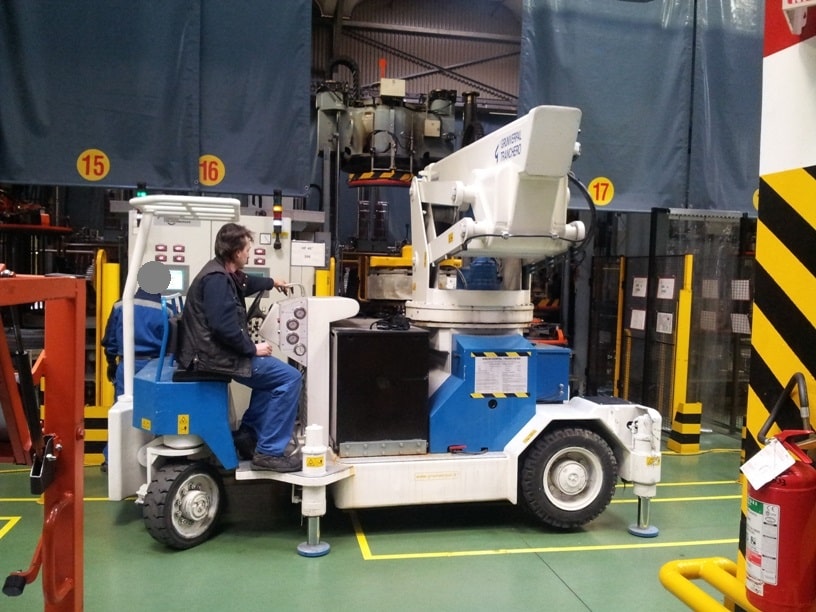

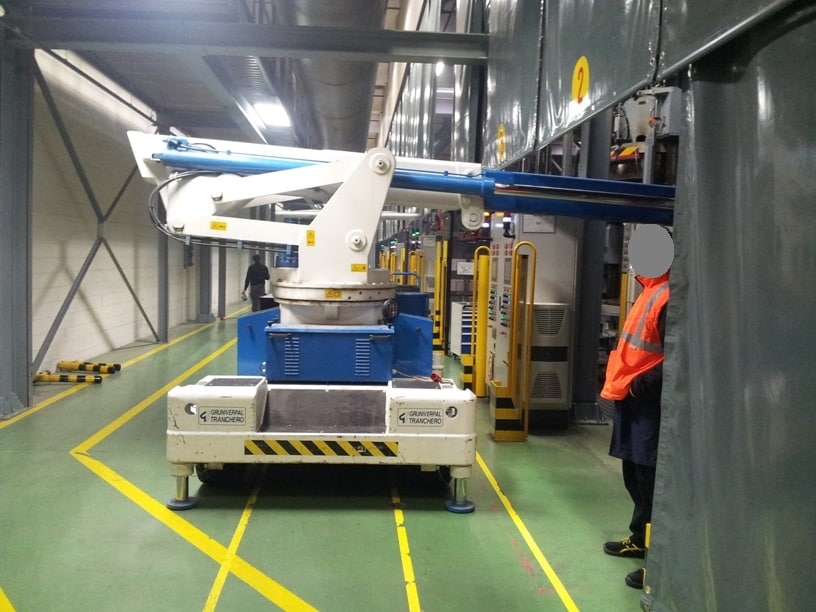

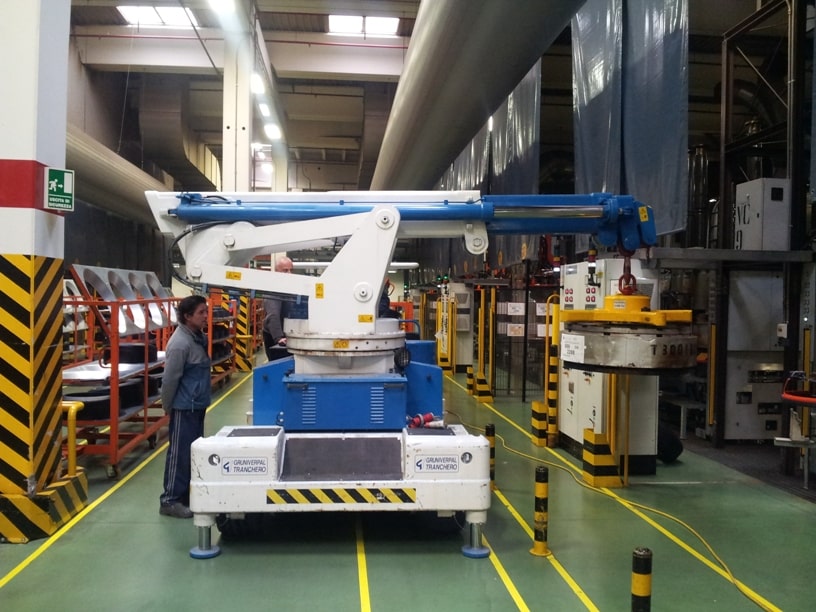

Serie Minidrel 125B_TRS

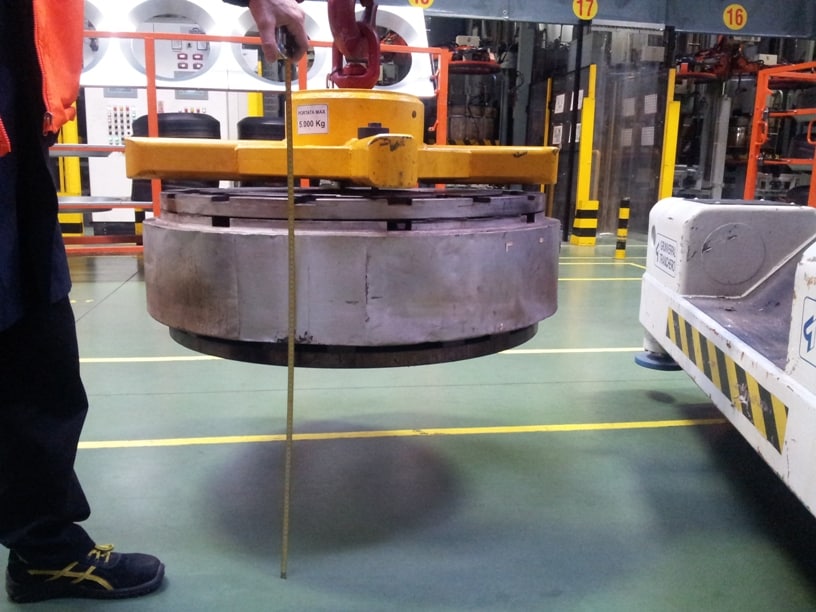

МОБИЛЬНЫЕ КРАНЫ для обработки пресс-форм и пневматического производства. До 12.500 Кг. груза.

Они могут использоваться во внутренних помещениях, таких как промышленные.

ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ

Весь ассортимент оборудования Gruniverpal сертифицирован в соответствии со следующими международными стандартами. ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ


Standard min. hook's height from the ground	1.200 mm
Standard max. hook's height from the ground	7.500 mm
Standard max. telescopic extension	4.500 mm
Rotation (option)	210°
Wheelbase	2.500 mm
Dimensions- lenght	3.615 mm
Dimensions- width	2.050 mm
Dimensions- height	2.650 mm
Adjustable speed from / to	From 0 to 100 m/min
Max. surmountable slope ( unloaded )	16%
Max. surmountable slope ( loaded )	8%
Front wheels	2 x ø711 x 356 mm
Rear driving wheel	2 x ø533 x 178 mm
Wheels material	Cushion
Drive	FOUR WHEELS
Electric motor power	12,0 KW / 78 cc.
Hardened battery (standard)	725 Ah / 78V
Battery charger on board	380 /440 V -50/60 Hz
Lead acid battery	●
Gel battery	○
Additional autonomy of battery	○
Proportional control on board of all mouvements	●
Certification to standard 2006/42 CE	●
Made in accordance (not certified) to standard UL508 A	●
Certification (issued by Third Party) to standard UL508 A	○
Drive hydraulic unit	●
Automatic braking system	●
Overloading safety system	●
Pressure safety valves on each movements	●
Safety emergency electric devices	●
Winch (lifting capacity on demand)	○
Wireless remote control (capacity on demand)	○
User Manual and technical documentation	●
Possibility to do all movements with max. Load	●
