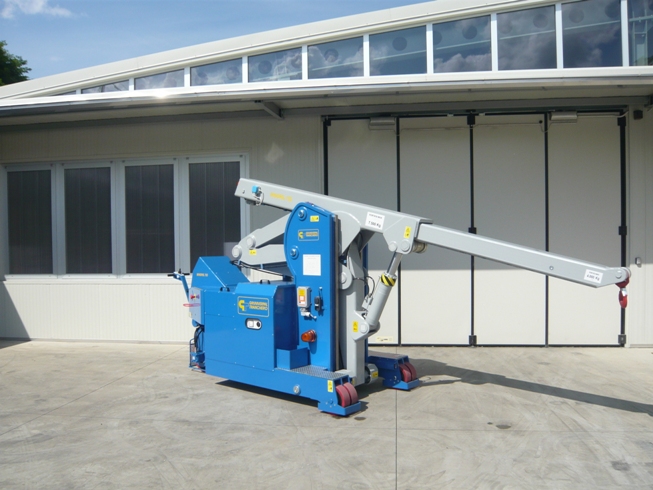

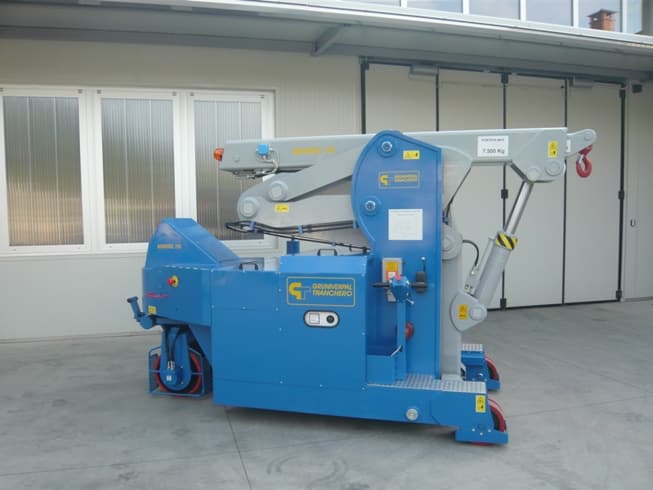

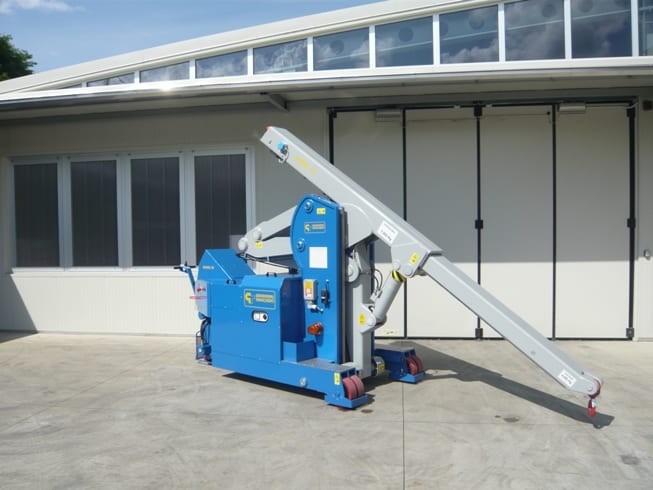

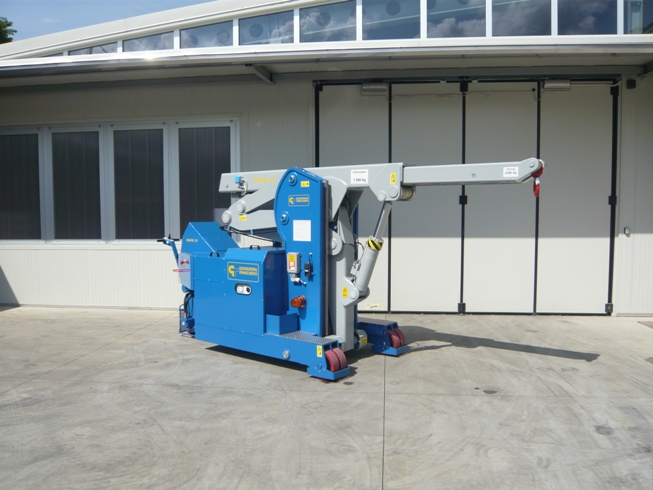

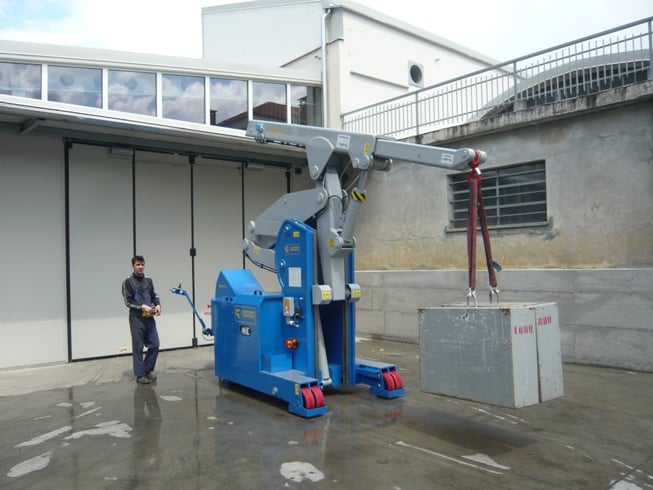

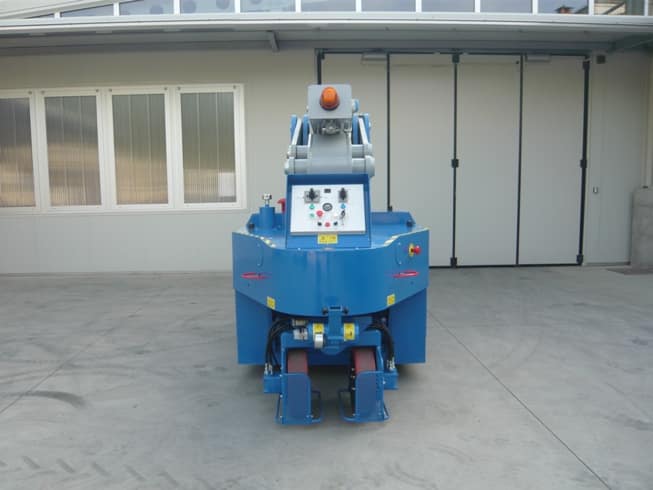

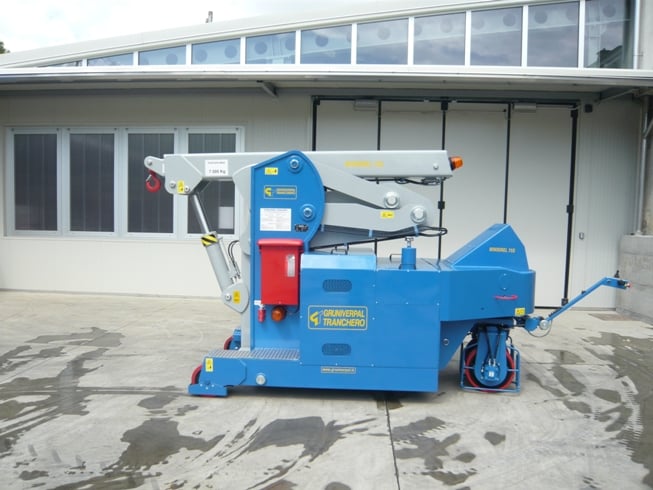

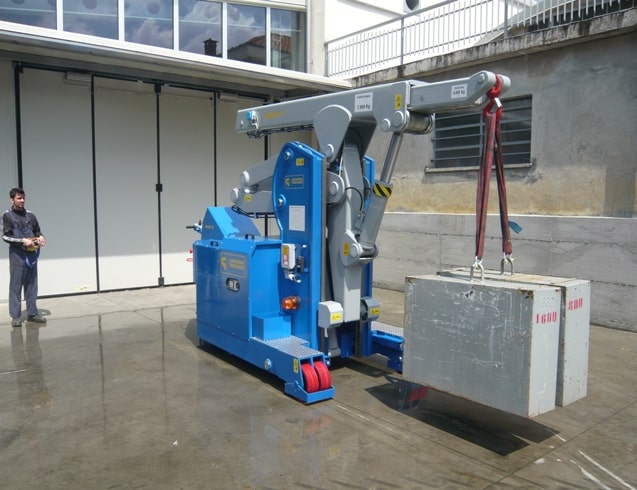

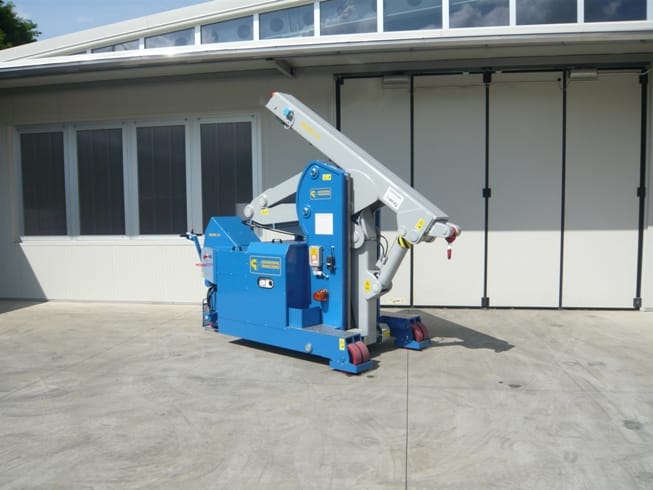

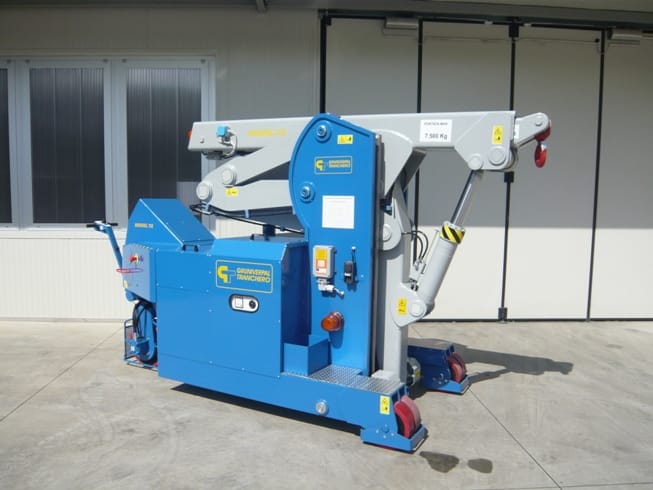

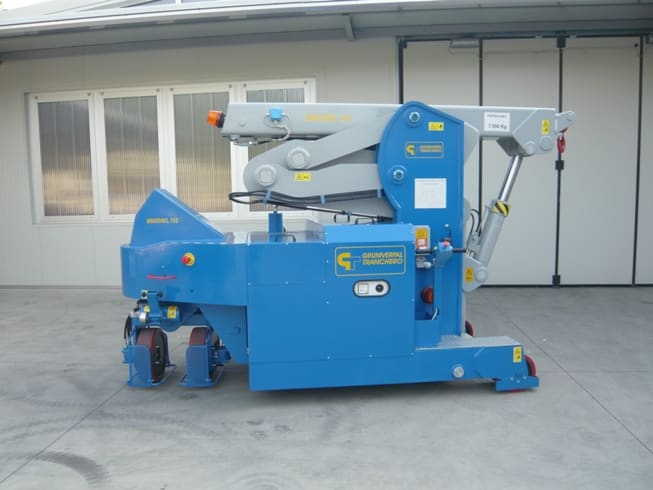

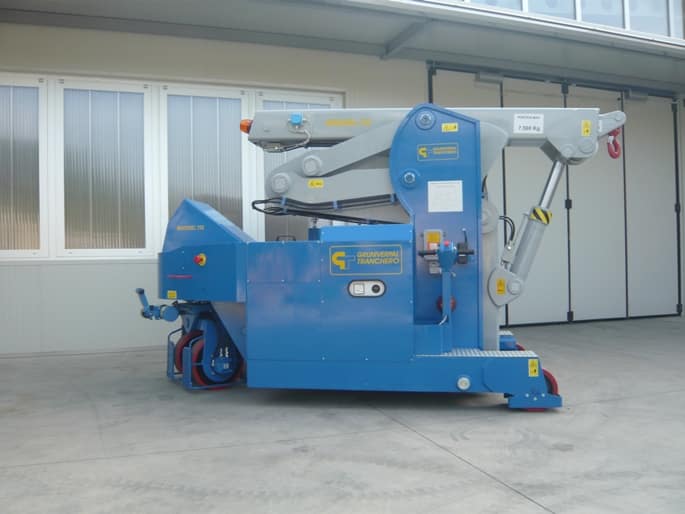

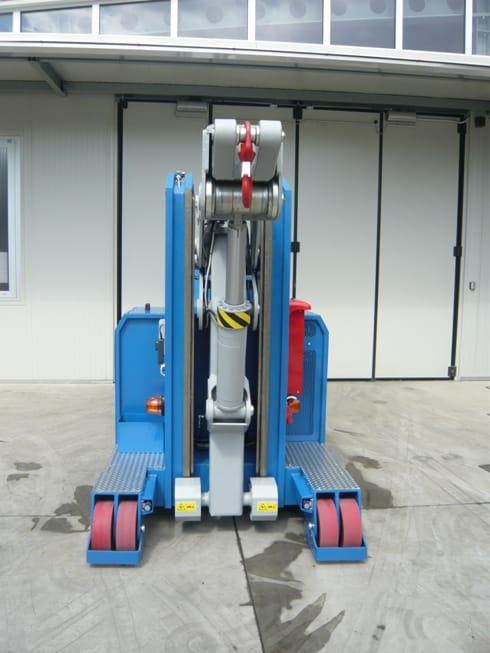

Serie Minidrel 75S_ARR

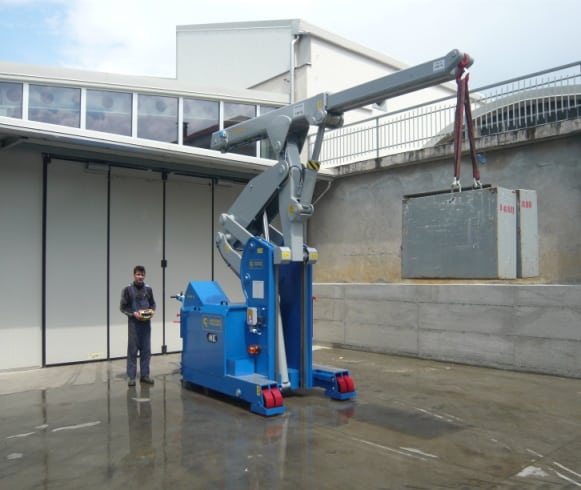

МОБИЛЬНЫЕ КРАНЫ для обработки пресс-форм и пневматического производства. До 7.500 Кг. груза.

Они могут использоваться во внутренних помещениях, таких как промышленные.

ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ

Весь ассортимент оборудования Gruniverpal сертифицирован в соответствии со следующими международными стандартами. ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ


Standard min. hook's height from the ground	100 mm
Standard max. hook's height from the ground	3.600 mm

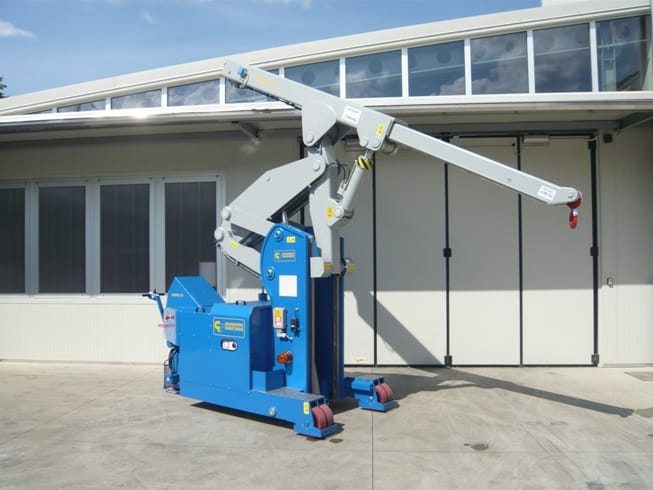

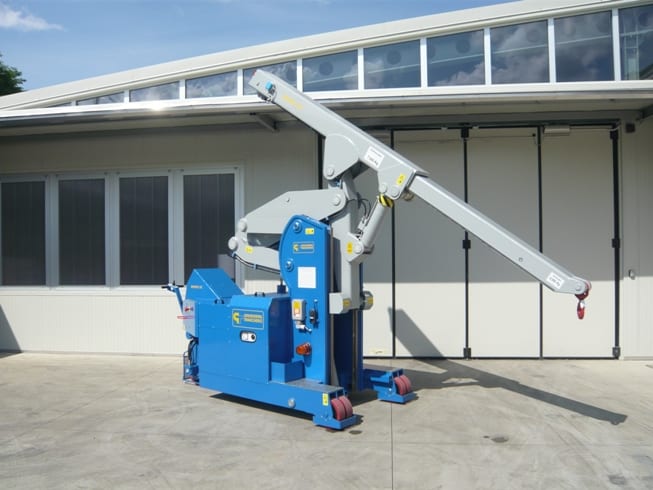

Standard max. telescopic extension	1.350 mm
Rotation (option)	-
Wheelbase	2.620 mm
Dimensions- lenght	3.250 mm
Dimensions- width	1.490 mm
Dimensions- height	2.200 mm
Adjustable speed from / to	From 0 to 60 m/min
Max. surmountable slope ( unloaded )	8%
Max. surmountable slope ( loaded )	3%
Front wheels	4 x Ø300 x 140 mm

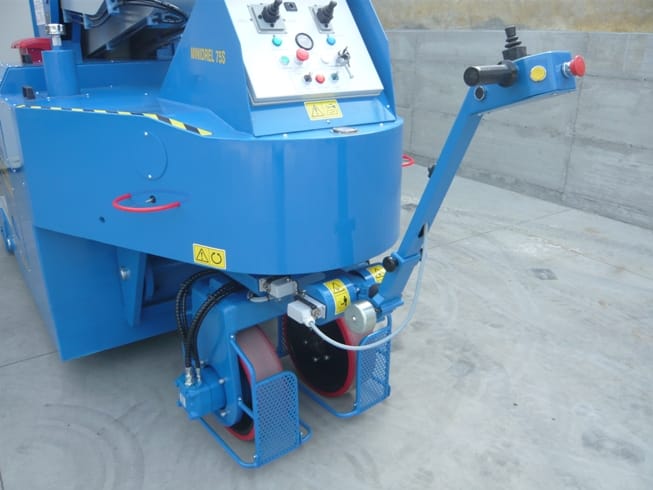

Rear driving wheel	2 x Ø 450 x 110 mm
Wheels material	Polyurethane
Drive	REAR WHEELS
Electric motor power	8,0 KW / 48 cc.
Hardened battery (standard)	560 Ah / 48V
Battery charger on board	380 /440 V -50/60 Hz
Lead acid battery	●
Gel battery	○
Additional autonomy of battery	○

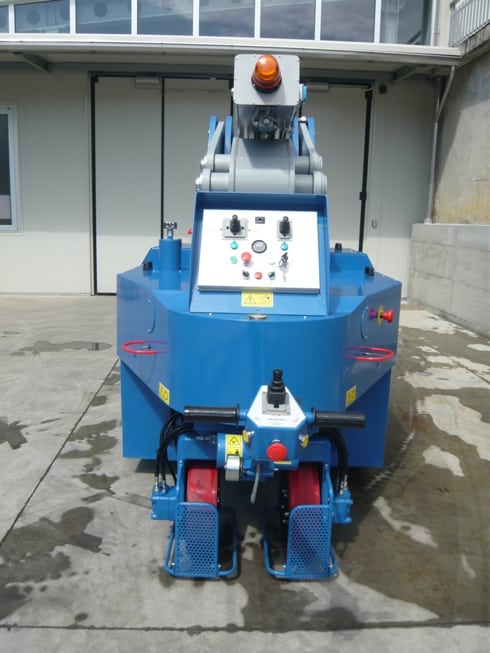

Proportional control on board of all mouvements	●
Certification to standard 2006/42 CE	●
Made in accordance (not certified) to standard UL508 A	●
Certification (issued by Third Party) to standard UL508 A	○
Drive hydraulic unit	●
Automatic braking system	●
Overloading safety system	●
Pressure safety valves on each movements	●
Safety emergency electric devices	●
Winch (lifting capacity on demand)	○
Wireless remote control (capacity on demand)	○
User Manual and technical documentation	●
Possibility to do all movements with max. Load	●
