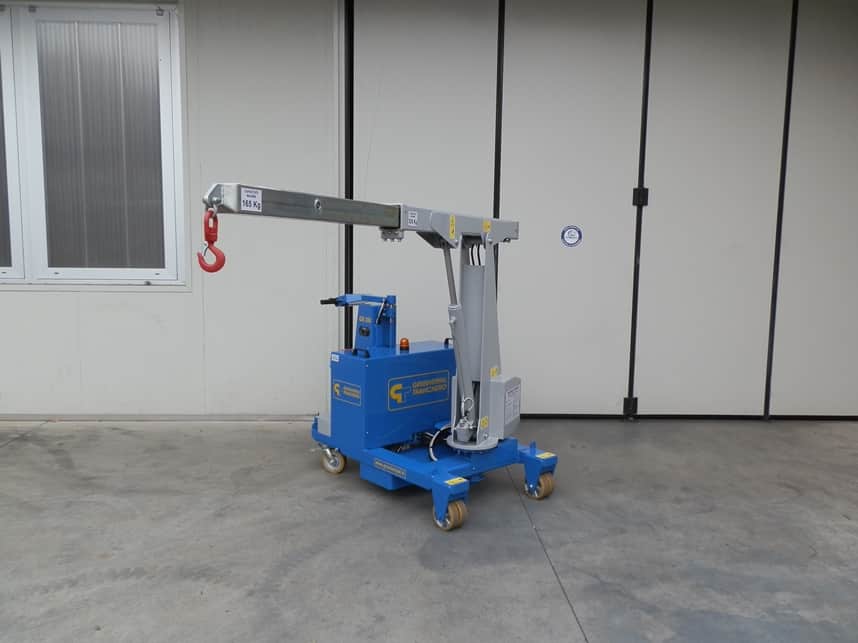

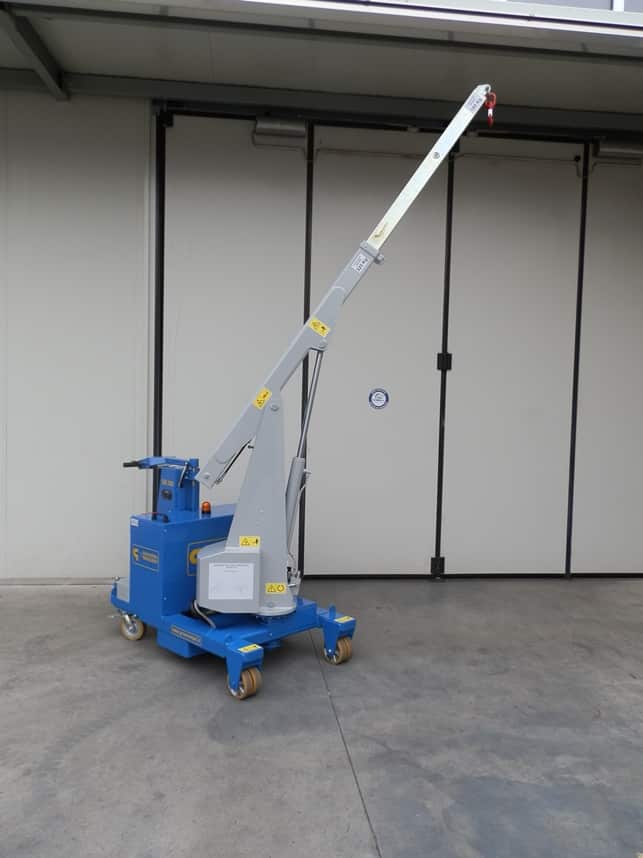

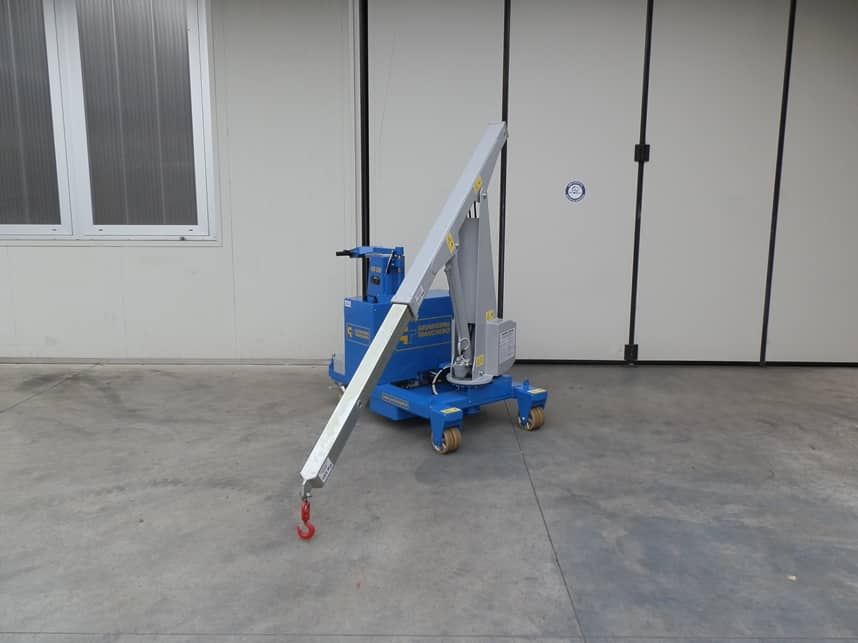

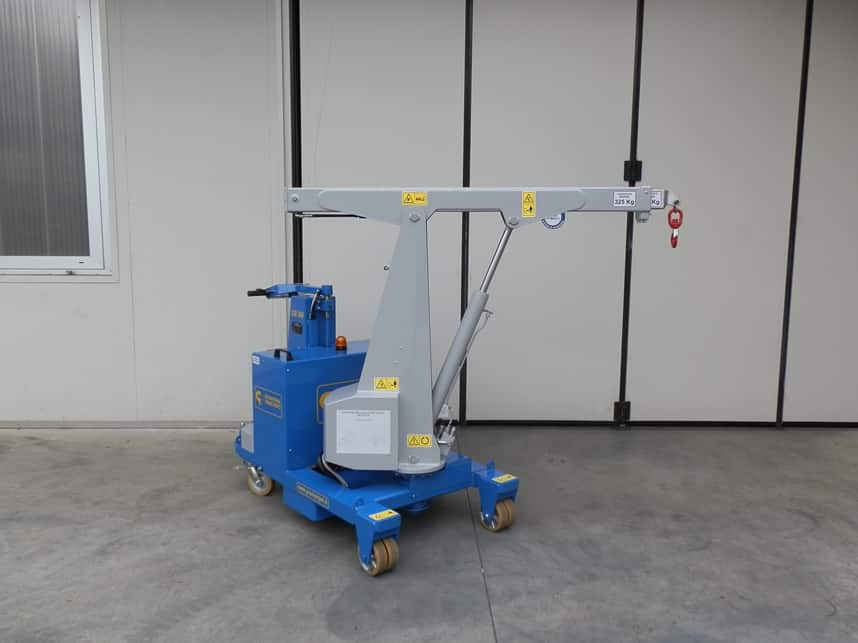

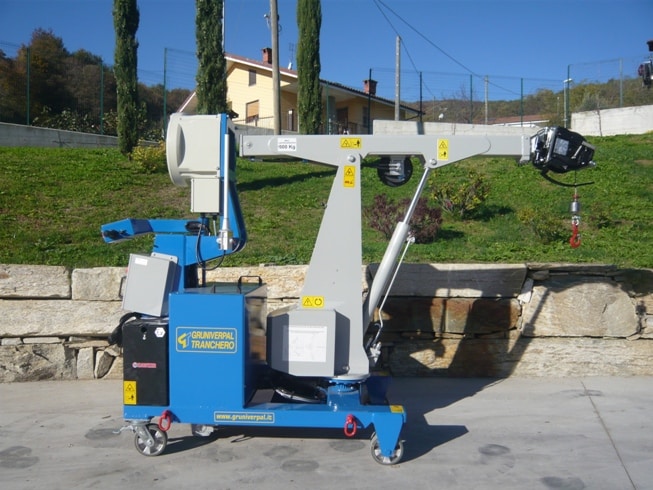

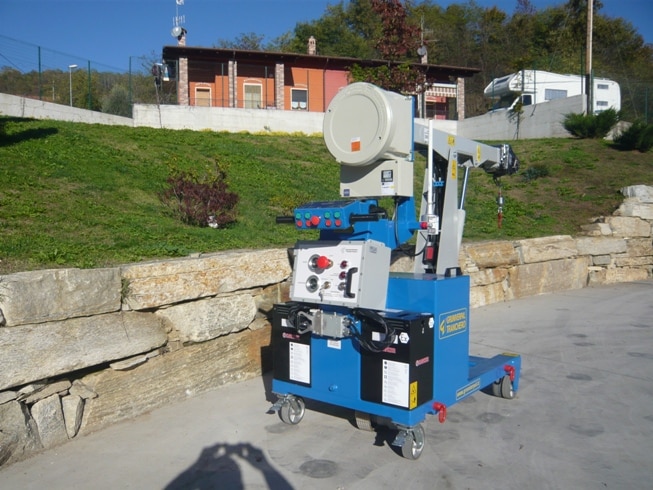

Serie GB 300_TR STANDARD

МОБИЛЬНЫЕ КРАНЫ для обработки пресс-форм и пневматического производства. До 300 Кг. груза.

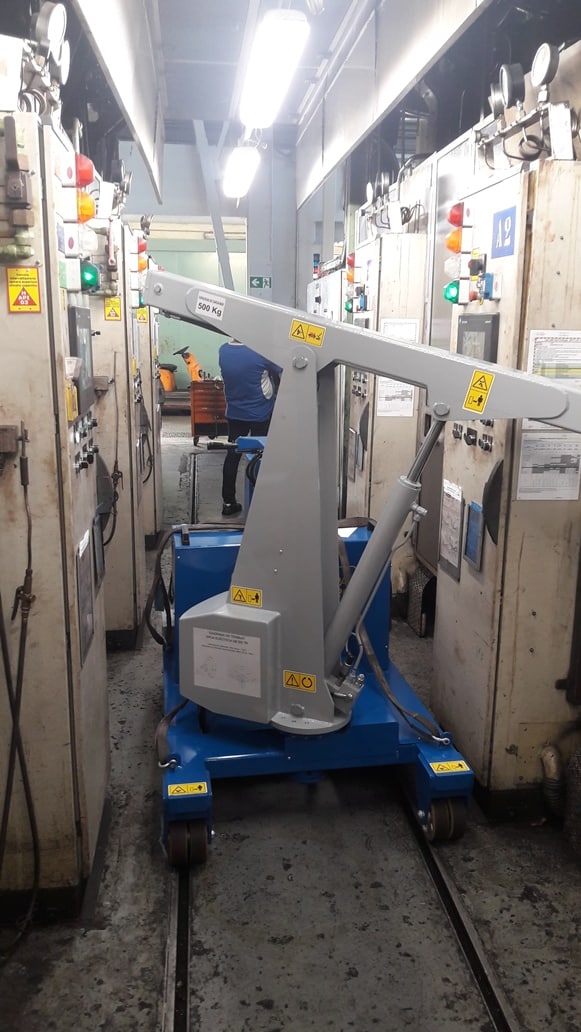

Они могут использоваться во внутренних помещениях, таких как промышленные.

ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ

Весь ассортимент оборудования Gruniverpal сертифицирован в соответствии со следующими международными стандартами. ЗАПРОСИТЬ ПРЕДЛОЖЕНИЕ


	GB300_TR STANDARD
Maximum load capacity	300 KG
Standard min. hook's height from the ground	200 mm
Standard max. hook's height from the ground	3.200 mm
Standard max. telescopic extension	1.960 mm
Capacity at standard max. telescopic extension	180 kg
Rotation (option)	150°
Wheelbase	1.000 mm
Dimensions- lenght	1.400 mm
Dimensions- width	850 mm
Dimensions- height	1.600 mm
Adjustable speed from / to	From 0 to 40 m/min
Max. surmountable slope ( unloaded )	8%
Max. surmountable slope ( loaded )	3%
Front wheels	4 x Ø 160 x 60 mm
Rear driving wheel	1 x Ø 160 x 80 mm
Wheels material	Polyurethane
Drive	REAR WHEEL
Total weight	950 kg
Electric motor power	1,0 KW / 12 V.
Hardened battery (standard)	200 Ah / 12 V
Battery charger on board	110 / 240 V -50/60 Hz
Lead acid battery	-
Gel battery	●
Additional autonomy of battery	○
Proportional control on board of all mouvements	●
Certification to standard 2006/42 CE	●
Made in accordance (not certified) to standard UL508 A	●
Certification (issued by Third Party) to standard UL508 A	○
Drive hydraulic unit	●
Automatic braking system	●
Overloading safety system	●
Pressure safety valves on each movements	●
Safety emergency electric devices	●

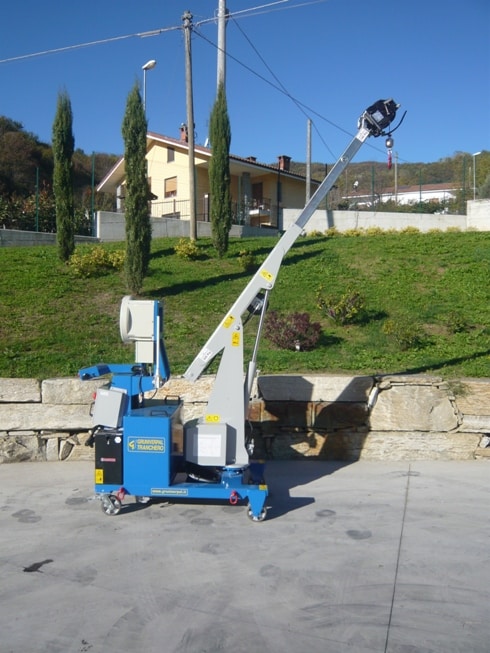

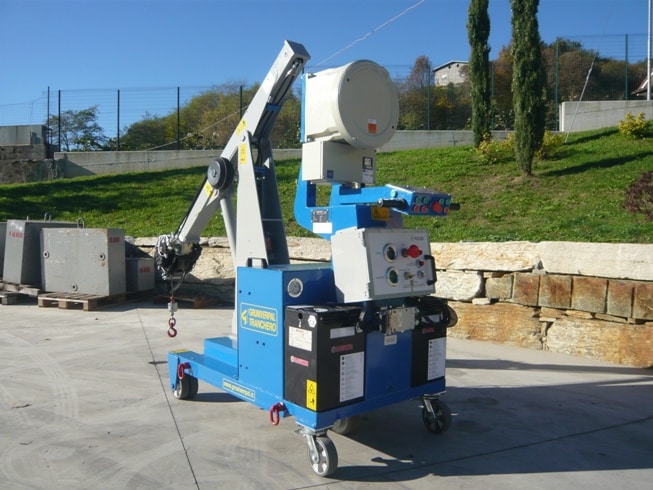

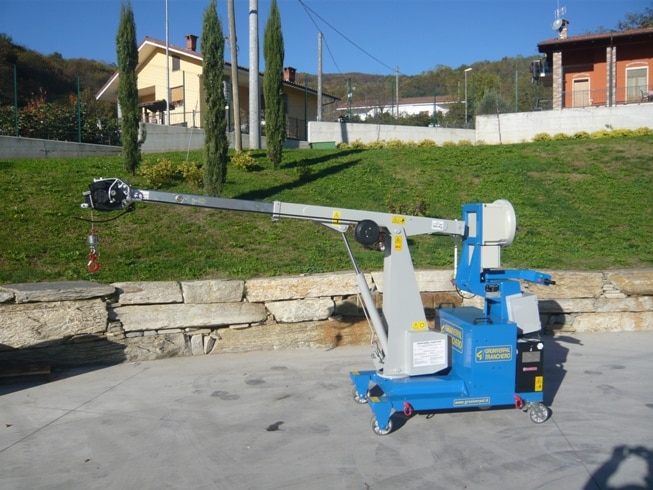

Winch (lifting capacity on demand)	○
Wireless remote control (capacity on demand)	○
User Manual and technical documentation	●
Possibility to do all movements with max. Load	●
